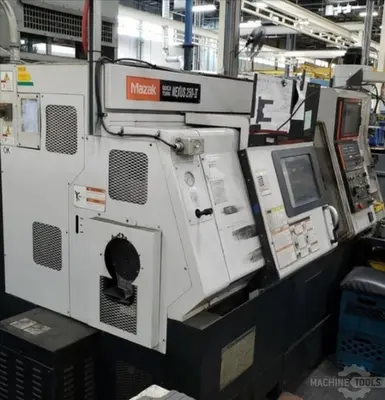

26.57” X 18” CNC Turning Center with Mazatrol Matrix Control, EIA / ISO Input Function, Programmable Tailstock, Chip Conveyor and 3 - Jaw Chuck

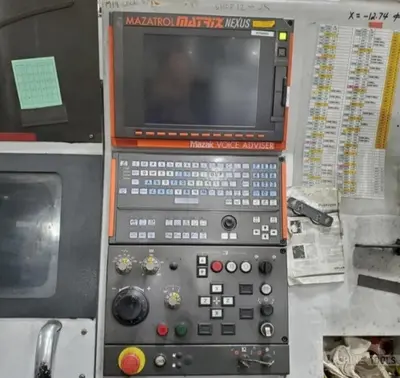

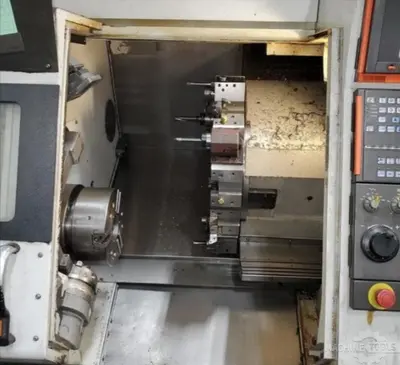

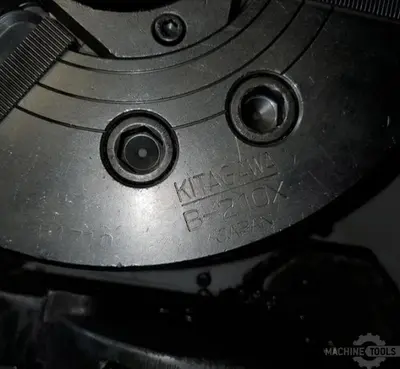

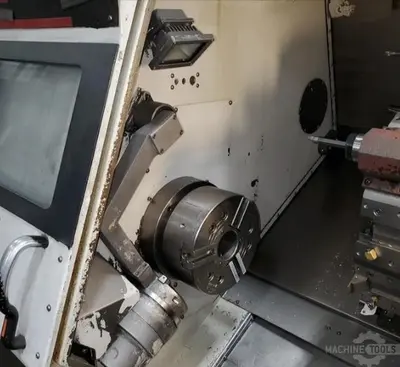

26.57” X 18” CNC Turning Center with Mazatrol Matrix Control, EIA / ISO Input Function, Programmable Tailstock, Chip Conveyor and 3 - Jaw ChuckGENERAL SPECIFICATIONS Max Swing: 26.57”Max Turning Diameter: 18.73”Spindle Bore / Max Bar Capacity: 3.46” / 3.0”Z - Axis Travel: 20.25”X - Axis Travel: 7.5”Machining Length: 19.85”Chuck Size: 10”Chuck Type: Hydraulic Spindle Motor: 35 HPSpindle Speeds: 4000 RPMSpindle Bore: 3.46”Max Bar Capacity: 3.06”Turret Tool Positions: 12Dimensions: 108” X 74” X 75” (w/o Conveyor)Weight: 11,000 LbsINCLUDES: Mazatrol Matrix Control, EIA / ISO Input Function, Programmable Tailstock, Chip Conveyor and 3 - Jaw Chuck
