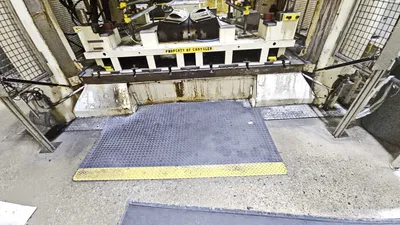

Cavenaghi-Ridolfi 250 Ton Hydraulic Press, Allen-Bradley Panelview 1000, Light Curtain
| Tonnage | 250 T | 226.796 t |
| Tonnage (Lifting) | 40 T | 36.287 t |
| Stroke | 66.93" | 1,700 mm |
| Daylight | 72" | 1,828.8 mm |
| Bolster Area | 98" X 79" | 98" X 79" |
| Side Window | 60" X 99" | 60" X 99" |
| Rapid Approach | 1,093 in/min. | 27.8 m/min. |
| Normal Pressing | 28 in/min. | 28 in/min. |
| Rapid Return | 354 in/min. | 9 m/min. |
| Power | 30 hp | 22.4 kW |
| Bed Height | 27" | 685.8 mm |
| Made In | Italy | Italy |
| Dimensions | 138" 87" X 268" | 138" 87" X 268" |
| Weight | 82,000 lb | 82,000 lb |
Allen-Bradley Panelview 1000
Light curtain
