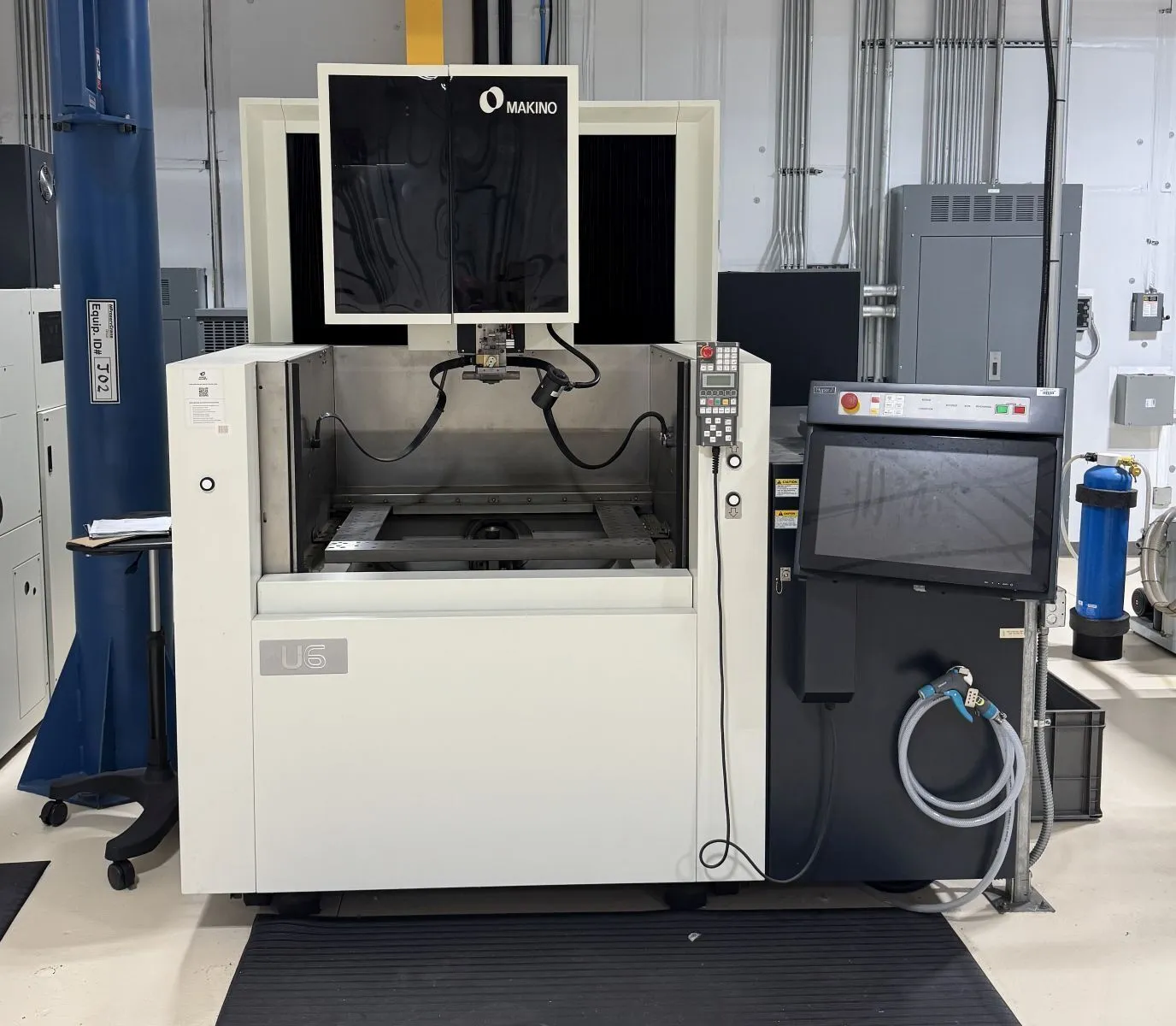

Hyper-i, 25.5" x 17.7" x 16.5"
| X-Axis Travel | 25.6" | 650.24 mm |
| Y-Axis Travel | 17.7" | 449.58 mm |
| Z-Axis Travel | 16.5" | 419.1 mm |
| Taper | +/-15 Deg. | +/-15 Deg. |
| Max. workpiece dimensions | 39.4" x 31.5" x 15.8" | 39.4" x 31.5" x 15.8" |
| Auto Threading (Yes/No) | Yes | Yes |
| Submerged (Yes/No) | Yes | Yes |
| Control | CNC (Hyper-i) | CNC (Hyper-i) |
| Dimensions | 88" x 125" x 93"H | 88" x 125" x 93"H |
| Weight | 14,000 LBS | 14,000 LBS |
Chiller
.05 Scale feedback on X & Y axes
Special hardened U shape work table
