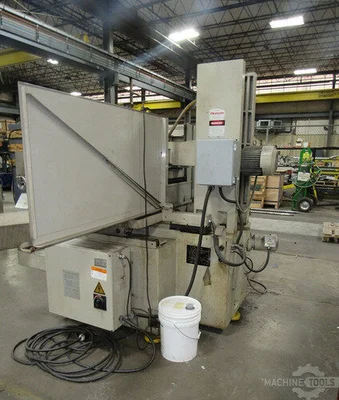

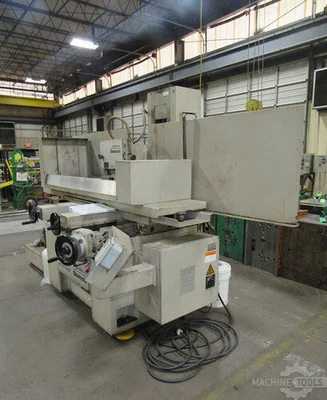

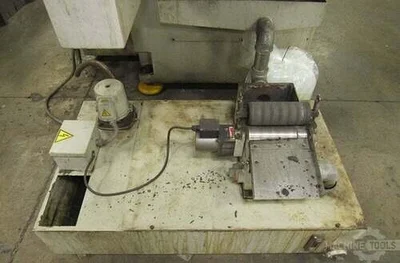

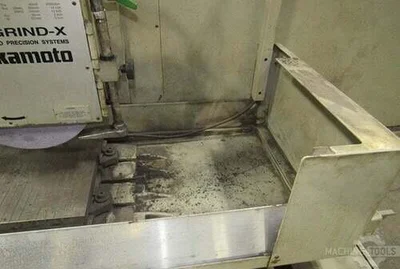

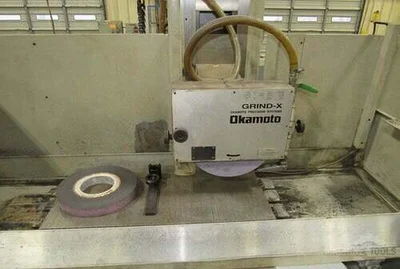

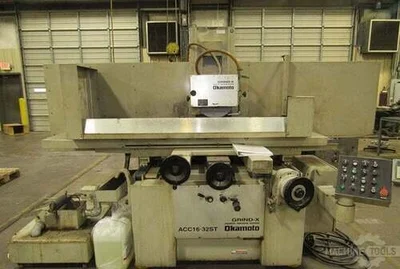

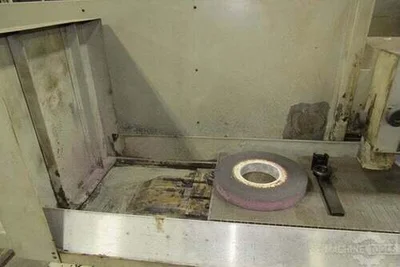

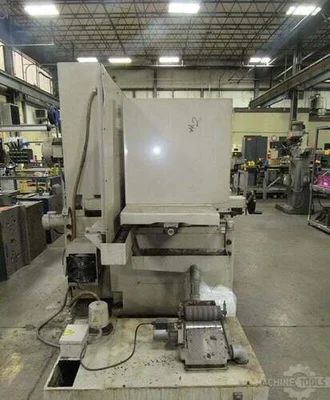

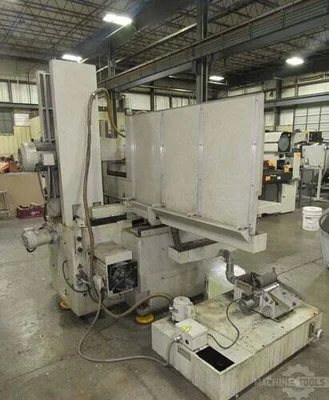

16” X 32” Surface Grinder with Centralized Operator Controls, Auto Incremental Downfeed, Surface Plunge Modes, Manual Fine Feed Push Button, Automatic Sparkout of Wheel Up to 5 Passes, Automatic Table Park, Gravity Feed Automatic Lubrication System, Kanetsu Cross-Pole Electro-Magnetic Chuck, Variable Hold Neutorfier on the Console Control and Coolant System.
| Table-W | 16" | 406.4 mm |
| Table-L | 32" | 812.8 mm |
| Power | 5 hp | 3.7 kW |
| Grinding Wheel Width | 1.5" | 38.1 mm |
| Grinding Wheel Dia. | 5" | 127 mm |
16” X 32” Surface Grinder with Centralized Operator Controls, Auto Incremental Downfeed, Surface Plunge Modes, Manual Fine Feed Push Button, Automatic Sparkout of Wheel Up to 5 Passes, Automatic Table Park, Gravity Feed Automatic Lubrication System, Kanetsu Cross-Pole Electro-Magnetic Chuck, Variable Hold Neutorfier on the Console Control and Coolant System.GENERAL SPECIFICATIONS Max. Grinding Length: 32”Max. Grinding Width: 16”Max. Height Under 12” Wheel: 21.5” Max. Longitudinal Movement: 37.5”Max. Cross Movement: 175”Longitudinal Hydraulic Feed: 10’ - 82’ FPMLongitudinal Feed Per Handwheel Rev: 1.85”Cross Feed Hydraulic Intermittent: 0.02” - 0.8”Hydraulic Continuous: 4” - 40” IPMHand Feed / Revolution: 0.05”Graduation of Handwheel: 0.0001”Rapid Feedrate: 16” IPMGrinding Wheel Dimensions: 12” X 1-½” X 5”Spindle Speed: 1,800 RPMReservoir Capacity: 48 GallonsSpindle Motor: 5 HPHydraulic Pump Motor: 3 HPVertical Rapid Feed Motor: 0.5 HPApprox Floor Space Required: 130” X 88” X 80”Approx. Weight: 7,600 LbsINCLUDES: Centralized Operator Controls, Auto Incremental Downfeed, Surface Plunge Modes, Manual Fine Feed Push Button, Automatic Sparkout of Wheel Up to 5 Passes, Automatic Table Park, Gravity Feed Automatic Lubrication System, Kanetsu Cross-Pole Electro-Magnetic Chuck, Variable Hold Neutorfier on the Console Control and Coolant System.
