50 ton Macrodyne Model MPZ-50 4-Post Used Hydraulic Press For Sale, Year 2008
Tonnage: 50
Stroke: 20 inches
Bed Size: 72" x 30"
Ram Area: 72" x 30"

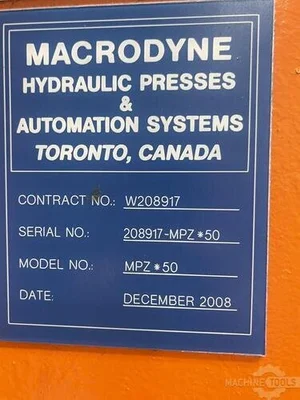

Macrodyne 4-Post Hydraulic PressModel # MPZ-50Serial Number / 208917Year 2008
Pressing Force: 50 Ton
Maximum Return Force: 1.5 Ton
Usable Bed Size: 72"LR x 30" FB
Usable Slide Size: 72"LR x 30"FB
Distance Between Columns: 72"LR x 22"FB
Open Daylight: 36"
Closed Daylight: 16"
Stroke: 20"
Speeds:
Approach Speed: 19.5"@5.0"/Second = 3.90 Sec.
Pressing Speed: 0.5"@0.5"/Sec. = 1.00 Sec.
Return Speed: 20.0"@5.0"/Sec. = 4.00 Sec.
Shifting Time Etc. = 1.00 Sec.
Total Dry Cycle = 9.90 Sec.
Hydraulic System Operating Pressure: 2,600 PSI
Controls: Allen Bradley w/Panelview 600
Control Features: Programmable Pressing SpeedSlide Position and Monitoring via Position TransducerMulti-Mode Capability
Programmable DwellsJog FunctionSecurity ScreenFault Diagnostics
Electrical: 480V/3PH/60HzWeight: 15,000 lbs. ApproximateDimensions: 80" LR x 36" FB x 150" Tall (Max. Overall)Can be seen under power upon request! 4-post Hydraulic Press For Sale, Macrodyne Hydraulic Press
