LeBlond Makino Regal Servo Shift 15C Engine Lathe available. Offers 15" swing, 54" centers, and 2.2656" spindle bore. Features 7.5 hp power, 45-1800 RPM, 2-112 TPI, and KDK tool holder. Includes 4-jaw chuck and chip pan.
| Swing | 15" | 381 mm |
| Centers | 54" | 1,371.6 mm |
| Spindle Bore | 2.2656" | 57.546 mm |
| Power | 7.5 hp | 5.6 kW |
| RPM | 45 RPM | 45 RPM |
| Swing Over Cross Slide | 9.5" | 241.3 mm |

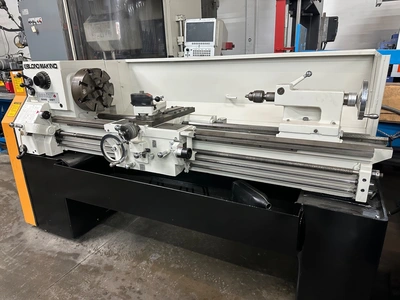

LeBlond Makino Regal Servo Shift 15C Engine Lathe #7125 #1
SPECIFICATIONS:
Swing Over Bed: 15"
Swing Over Cross Slide: 9 1/2"
Distance Between Centers: 54"
Spindle Speeds : 45- 1,800 RPM
Spindle Nose: D1- 6
Hole Thru Spindle: 2"
Threads:
Inch: 2- 112 TPI
Metric: 0.25- 14 MM
Feeds : 0.0018"- 0.104"
Cross Slide Travel: 8"
Tailstock Quill Travel: 5"
Tailstock Quill Taper: #4 MT
Dimensions (L x W x H): 105" x 55" x 52"
Weight: 3,500 Lbs.
EQUIPPED WITH:
4-Jaw Chuck
Chip Pan
KDK Tool Holder
