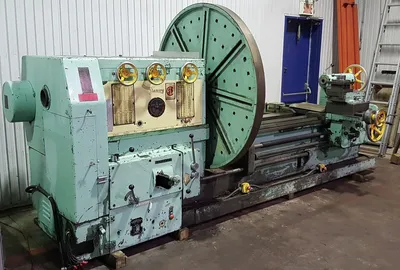

STANLEY SLIDING BED GAP LATHE WITH BACKBED 63" swing
Compact machine with plenty of capacity for occupied floor space.
Very very Uncommon on the market, this lathe can be operated from the front or the rear
Details :
Distance between center is 72" closed and approx 115"' open
Swing above the gap: Approximately 63”
Swing over ways: 30"
Swing over carriage wing:29"
Swing over cross slide: 22" possibly 23"
Faceplate diameter 60’’
Spindle bore : 4"
Spindle speeds (7 to 350 RPM)
Machine weight 14850 lbs plus backbed 2500 lbs approx

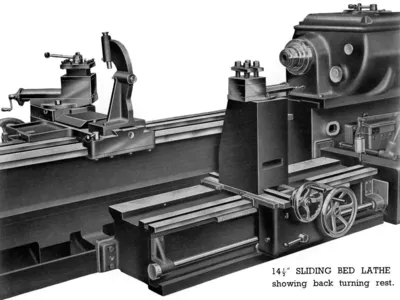

Equipped with the rear Back bed!
The 4 jaws chuck did not came with the machine. You may have to fit it to the lathe.
If you have questions or your want to discuss about price you may call me or try to let your number
Thanks for viewing.
The price include loading on your truck.
It have to be paid by wire transfer
My name is Yannick Paradis 819-376-0529 and my company is Omicron Machinery
Thanks
Have a nice day
| Swing | 30" | 762 mm |
| Gap Swing | 63" | 1,600.2 mm |
| Centers | 0" | 0 mm |
| Spindle Bore | 4" | 101.6 mm |
| Taper | Taper attachment | Taper attachment |
| Weight | 17500 approx | 17500 approx |
Details :
Distance between center is 72" closed and approx 10' open
Swing above the gap: Approximately 63”
Swing over ways: 30"
Swing over carriage wing:29"
Swing over cross slide: 22" possibly 23"
Faceplate diameter 60’’
Spindle bore : 4"
Spindle speeds (7 to 350 RPM)
550 volt 15 hp motor
Machine weight 14850 lbs plus backbed 2500 lbs approx
Equipped with the rear Back bed!
