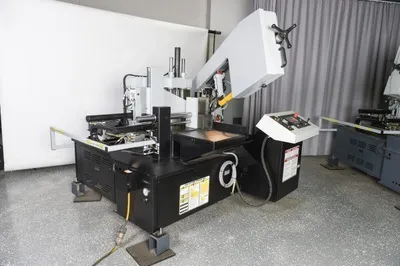

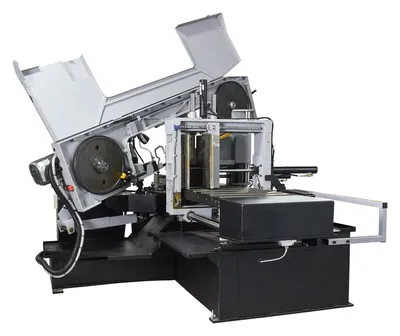

The S-20A automatic scissor style band saw features a swing head design and provides exceptional miter cutting capability for light to medium duty applications.
Featuring a 13″H x 18″W capacity at 90°, 3 HP motor, and 1″ blade, the S-20A is a versatile, automatic scissor style band saw ideal for use in tight working spaces.
| Rect-Cap (H) | 13" | 330.2 mm |
| Rect-Cap (W) | 18" | 457.2 mm |
| Rounds-Cap | 13" | 330.2 mm |
| Square-Cap | 11" | 279.4 mm |
| Power | 5 hp | 3.7 kW |
| Type (Auto, Manual, Semi) | Auto | Auto |
| Blade Width | 1" | 25.4 mm |
| Blade Length | 178" | 4,521.2 mm |
| Dimensions | 93" x 86" x 52" | 93" x 86" x 52" |
| Weight | 3,800 lbs | 3,800 lbs |
Specifications (subject to buyer verification):
Specifications (subject to buyer verification):
Capacity 90°: Rectangular: 13” x 18”, Round: 13”
Capacity 45°: Rectangular: 13” x 10 3/4”, Round: 12”
Capacity 30°: Rectangular: 13” x 7 3/4”, Round: 8 1/2”
Blade Size: 1” x 14’ 10”
Blade Drive: 5 HP VFD
Blade Speed: 75 -350 SFM
Table Height: 31"
Coolant Tank Capacity: 12 Gallons
Workload: 5,000 lbs
Machine Voltage: 208*, 240*, 480, 575* v *Transformer supplied at no charge
Machine Weight: 3,800 lbs.
Dimensions (W x L x H): 93” x 86” x 52”
Equipped With (subject to buyer verification):
Standard Machine Features:
• Easy swing, heavy duty cast iron saw head that can swing up to 60 degrees one direction.
• Cast iron material shuttle features automatic multi-indexing up to 27” in a single stroke. Powered by ball screw and stepper motor.
• 5 HP VFD. True direct blade drive – no belts/pulleys
• On-demand hydraulics save energy
• Blade chamber pulls back material from cut part extending blade life
• Cast iron band wheels
• Automatic PLC, touch screen control programmable up to 100 jobs with 20 in queue
• Replaceable blade brush
• Robust steel base
• Easy to read angle scale with angle locking mechanism
• Cast iron saw blade guide arm mounted on linear rails is adjustable for proper spacing.
• Easy access electrical panel
• Full capacity, full stroke hydraulic material vises
• Out of stock switch
• Mechanical band tensioning with digital readout
• Hydraulic positive down feed of sawing head
• Pre-set replaceable carbide guide inserts
• Safety door interlocks
• Flood coolant with wash down hose
• Laser light
• Work light
• Variable vise pressure
Optional Machine Features:
• Full capacity hydraulic overhead bundling
• Mist lubrication
• Idler conveyors
• Powered conveyors
• Remote console – 10’ cord
