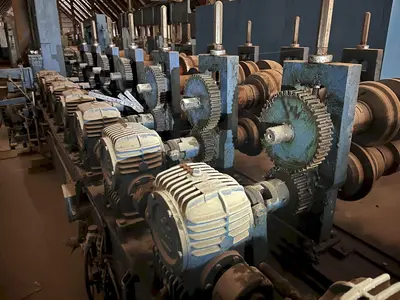

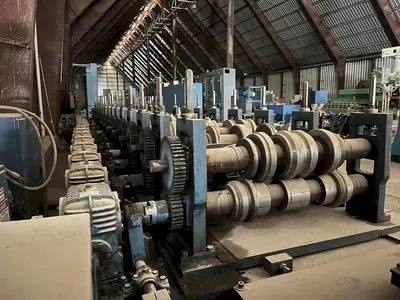

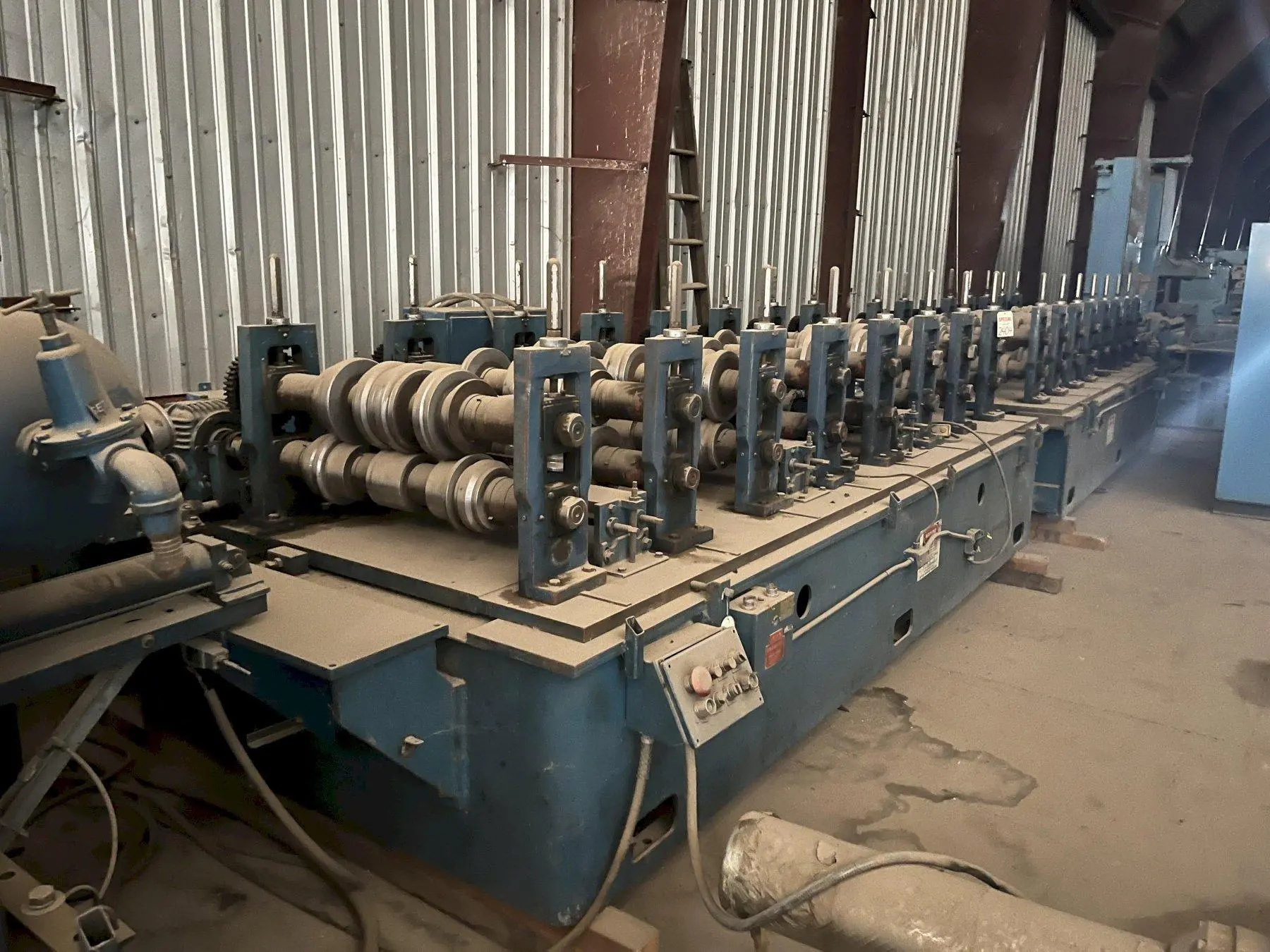

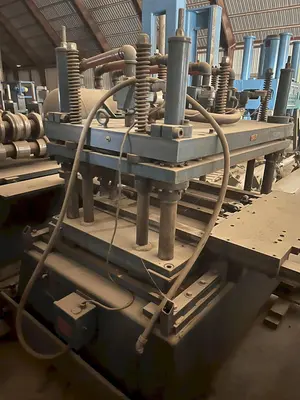

Number of Stands ................ 16 Stand Bradbury Roll Former
Number of Bases ................. (2) 8 Stand Per Base
Shaft Diameter................... 3"
Vertical Center Distance......... 4.5" to 9" center to center
Horizontal Center ............... 20"
Pass Line Height................. 38" (existing tooling)
Machine Base Height.............. 26"
Roll Space....................... 37"
Roll Speed....................... 0 to 95 fpm
Vari-Speed Drive ................ Yes
Gear Driven ..................... Yes
Helical Gear Drives ............. Yes
Stands Simultaneously Clutched .. Yes
Entry Guides .................... Yes
Motor............................ 40 HP
Tooled For:

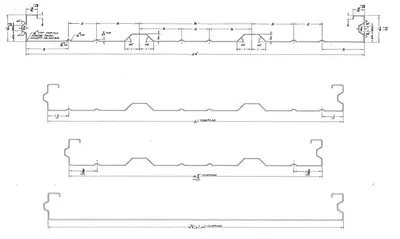

Ribbed & Flate Door Panel ....... 16-3/4", 21", 24" Wide
....... 1-7/8" High

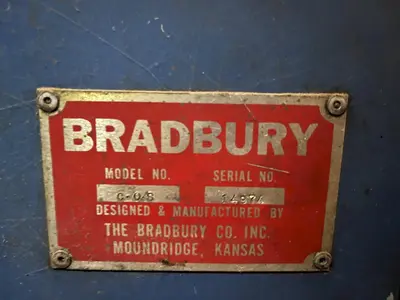

Brand
BRADBURY
Type
Roll Formers
Stock No.
22680
