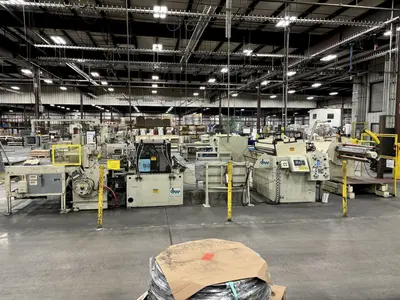

CWP CUT TO LENGTH LINE
CAPACITY 48" X .062" (14 GAUGE) X 10,000 LBS
DIRECTION R --> L
CONSISTING OF
GARY UNCOILER COIL REEL
SERIAL 175
MODEL 4500-SP-48
CAPACITY 10,000 LLBS
CWP STRIGHTENER
SERIAL C801
MODEL 48D7
PEELER TABLE
ENTRY PINCH ROLLS
WIDTH 48"
THICKNESS .021" TOP .062"
SPEED 1200 IPM
MOTORIZED
EXIT PINCH ROLLS
CASCADE ROLLS OUT
CWP THREADING TABLE
SERIAL C800
MODEL 48PTT21
2 SIDES
CWP SERVO FEEDER
COE SERVO CONTROLS SERVO MASTER TOUCH
SERIAL C799
MODEL SMXHD48SE4
CAPACTIY 48" W X .062" THICK
FEED LENGTH 999.999
PASS LINE 42"
SPEED 30 FL AT 85 SEC
ENTRY GUIDE
CASCADE ROLLS IN
HYDRAULIC NOTCHING STATIONS 2
WYSONG SHEAR
SERIAL P46-118
MODEL HS-1252
CAPACITY 14 GAUGE
AIR CLUTCH
GARY RUN OUT TABLE
SERIAL 175
MODEL 4500-SP-48
HYDRAULIC LIFT TABLE
30 X 61 X 15" H
CASTER WHEELS
