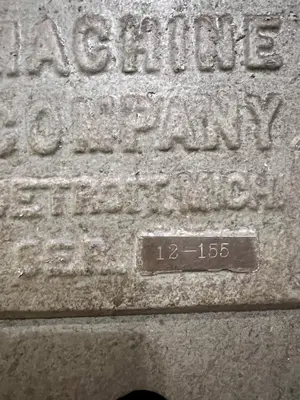

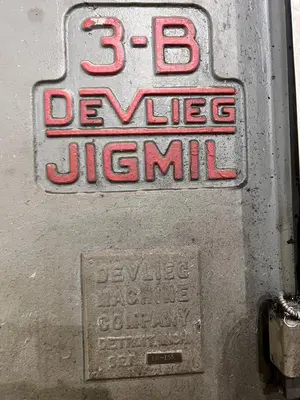

SERIAL ......................... 12-155

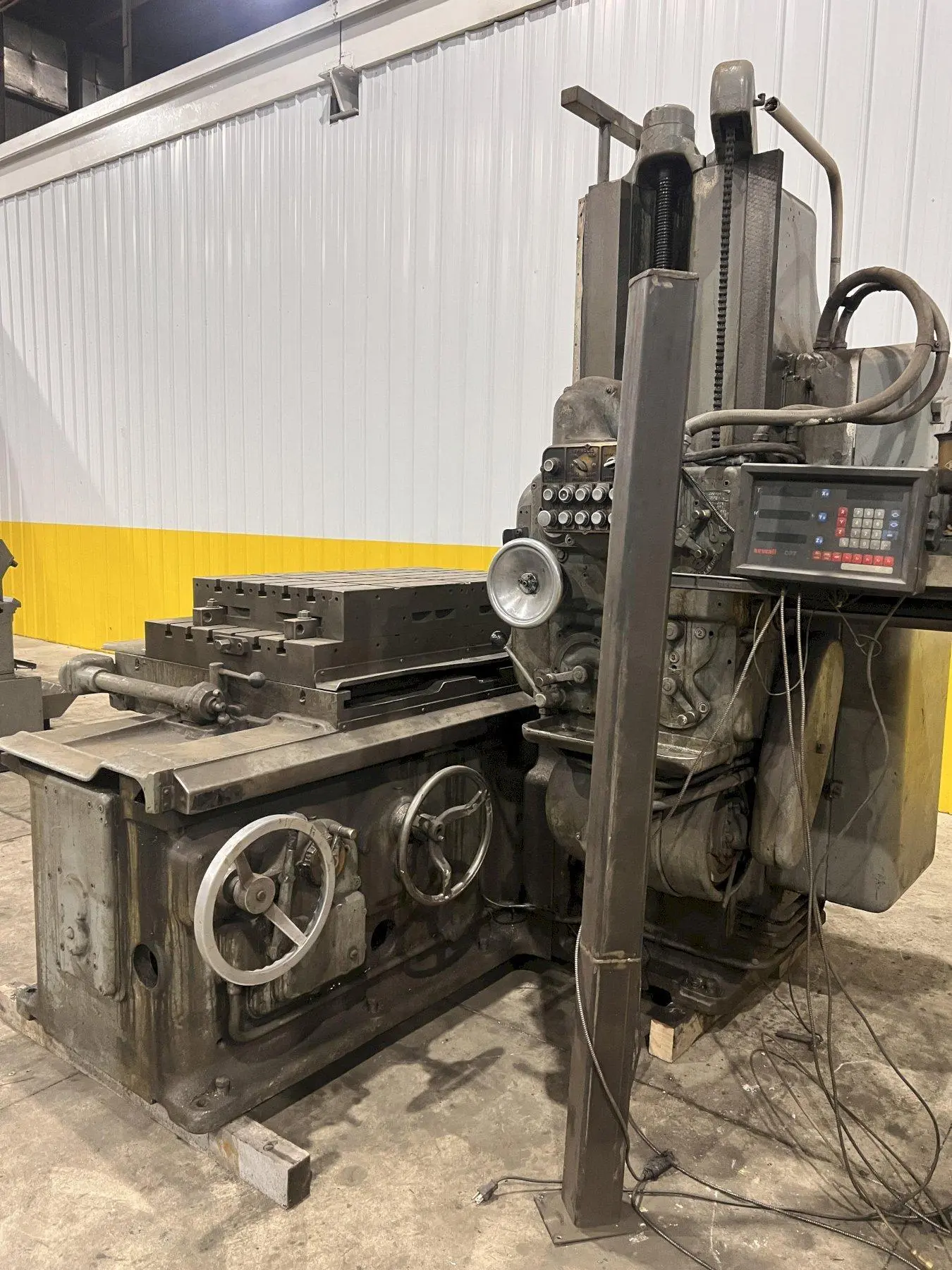

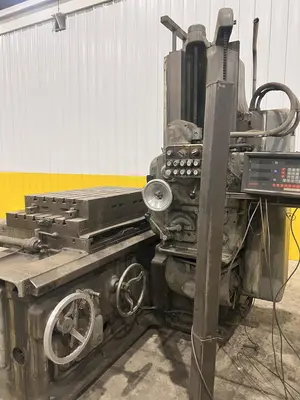

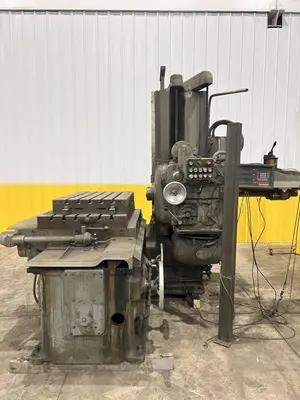

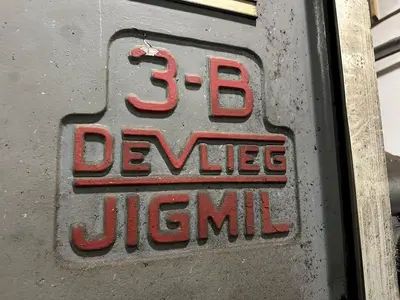

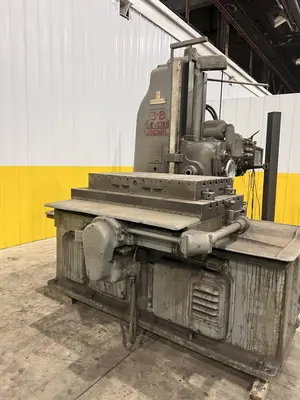

MODEL .......................... 3B-48
SPINDLE DIAMETER ............... 3”
SPINDLE SPEEDS ................. (16) 25 TO 1200 RPM
SPINDLE FEEDS .................. (6) .002 TO 20
TABLE FEEDS .................... (12) .3 TO 14 IPM
FEEDS .......................... (6) .003, .0017, .0011, .012, .0075, .0047
VERTICAL SPINDAL TRAVEL ........ 36”
FEED OUT OF SPINDLE ............ 16”
SPINDLE TAPER .................. #40
SIZE OF TABLE .................. 30” x 48”
LONGITUDINAL TRAVEL ............ 52”
TABLE CROSS TRAVEL ............. 16”
MAIN MOTOR ..................... 7.5 HP
Specifications
