Max Coil Width: 72"Max Coil Weight: 50,000#Thickness Range: .047"-.200"Line Speed: 50-150FPMCoil ID Range: 20"-28"Max Coil OD: 72"Max Stack Length: 252"Complete with the Following Components:Entry Coil Staging RampCoil LiftDouble Cone UncoilerSliding BasesPeeler and Hold Down RollPowered Hold Down RollPass Line RollEdge GuidesPinch RollsFlattenerFive Powered RollsPitPass Line RollEdge GuidesPinch RollsVoss LevelerModel: 84/2.687-17/5RH4HI Leveler17 RollsRoll Diameter: 2.687"Roll Face: 84"5 Flights of Back Ups3 Flights of Back Ups with Independent AdjustmentsMotorized Tilt75HP DC MotorEncoderWysong High Speed ShearBow Tie BladeConveyorDrop Type StackerSide Discharge
Max Coil Width: 72"
Max Coil Weight: 50,000#
Thickness Range: .047"-.200"
Line Speed: 50-150FPM
Coil ID Range: 20"-28"
Max Coil OD: 72"
Max Stack Length: 252"
Complete with the Following Components:
Entry Coil Staging Ramp
Coil Lift

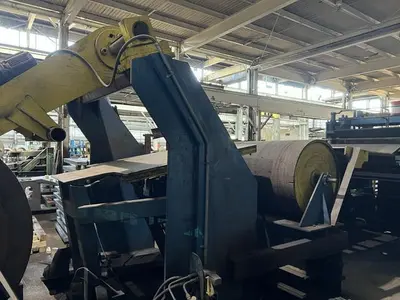

Double Cone Uncoiler
Sliding Bases
Peeler and Hold Down Roll
Powered Hold Down Roll
Pass Line Roll
Edge Guides
Pinch Rolls
Flattener
Five Powered Rolls
Pit
Pass Line Roll
Edge Guides
Pinch Rolls
Voss Leveler
Model: 84/2.687-17/5RH
4HI Leveler
17 Rolls
Roll Diameter: 2.687"
Roll Face: 84"
5 Flights of Back Ups
3 Flights of Back Ups with Independent Adjustments
Motorized Tilt
75HP DC Motor
Encoder
Wysong High Speed Shear
Bow Tie Blade
Conveyor
Drop Type Stacker
Side Discharge
BrandVoss
TypeCut To Length Lines
Stock No.22300
