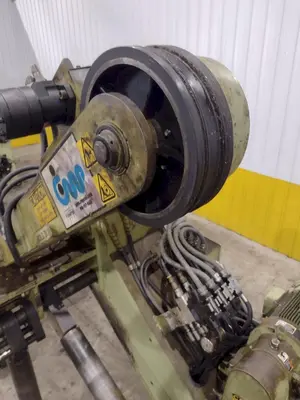

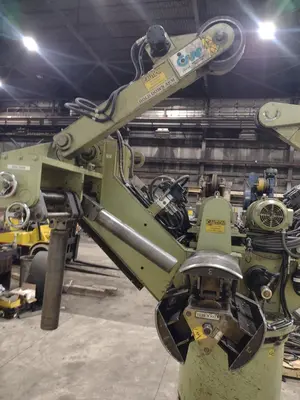

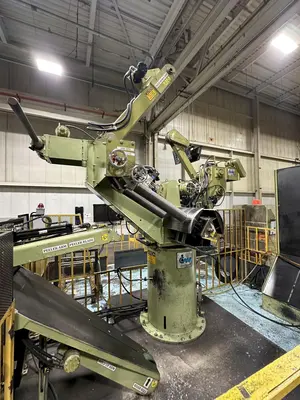

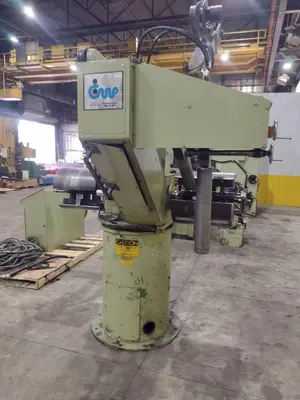

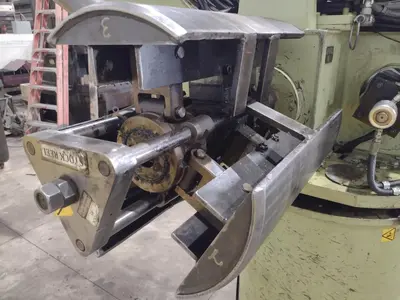

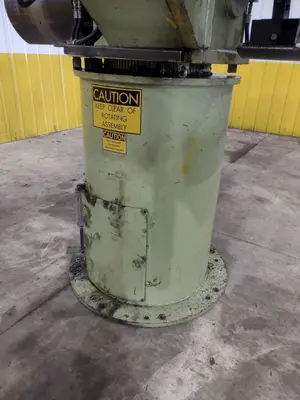

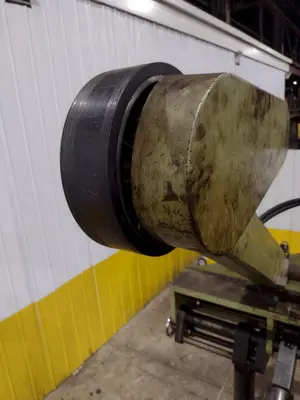

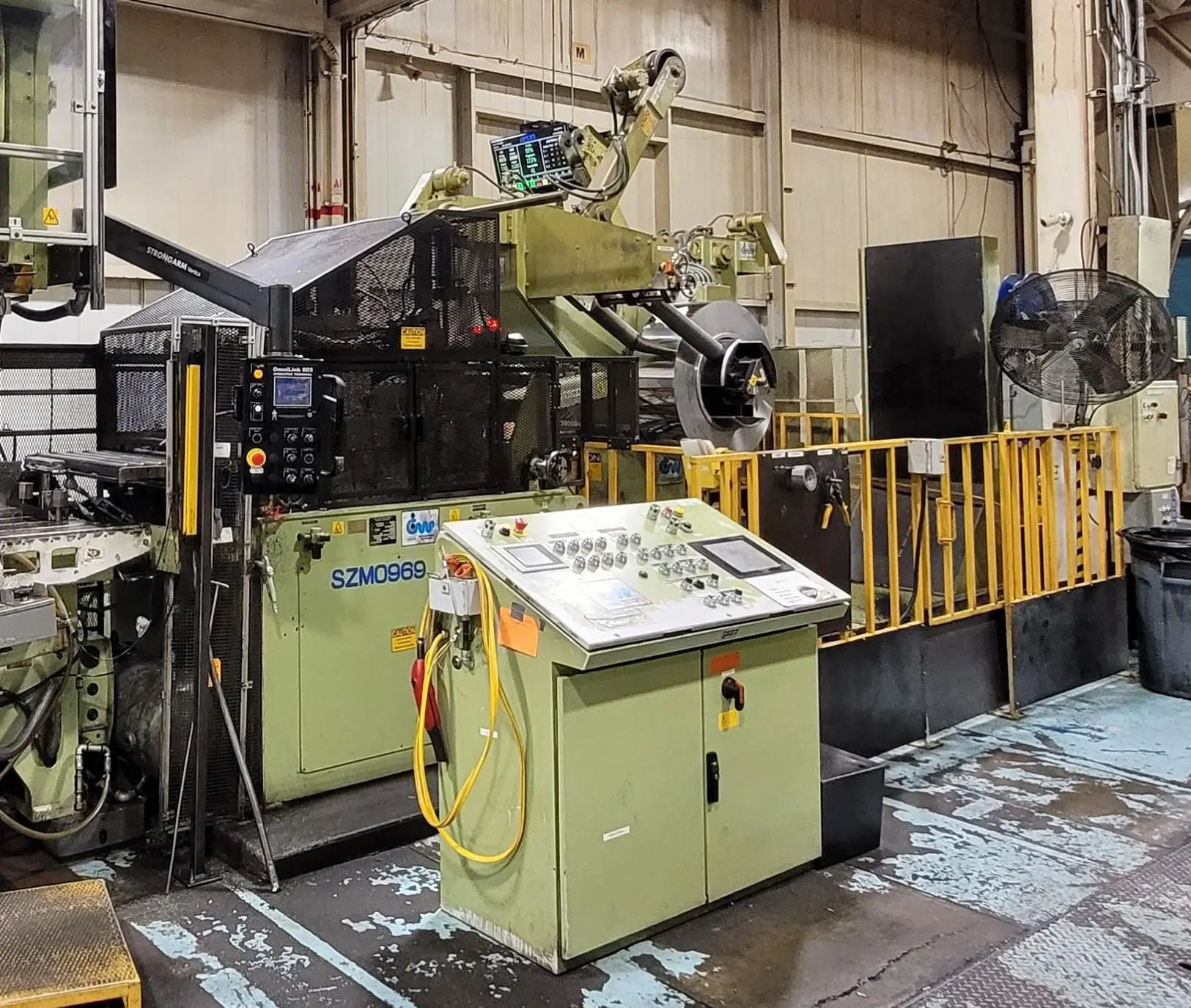

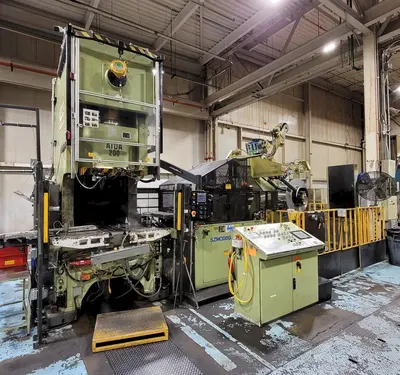

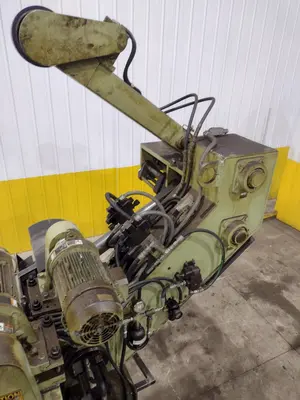

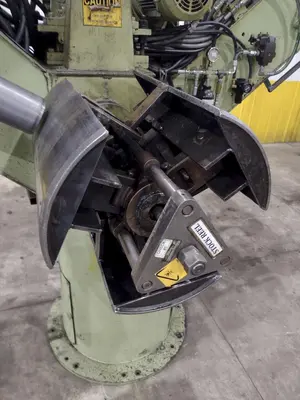

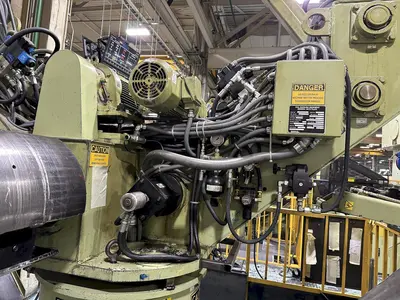

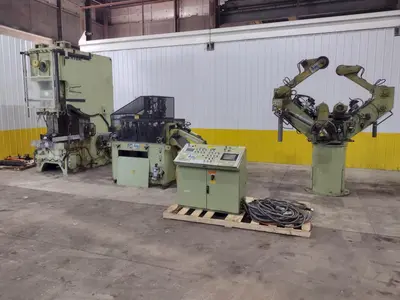

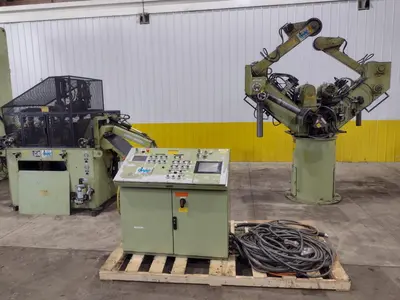

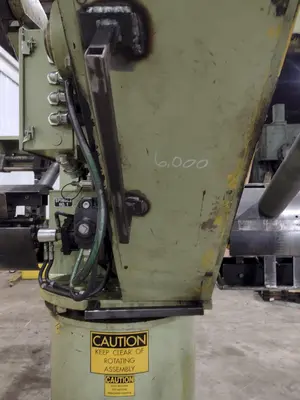

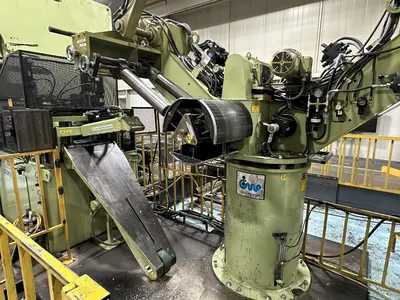

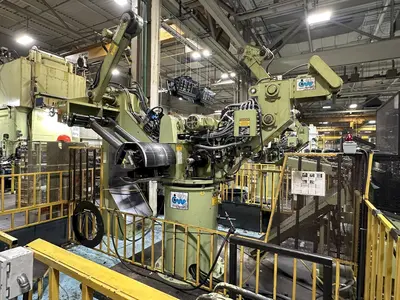

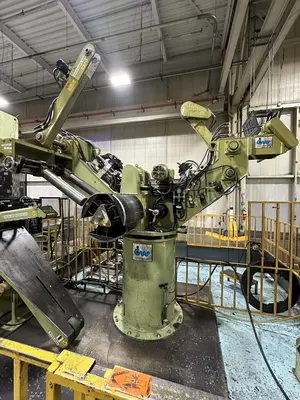

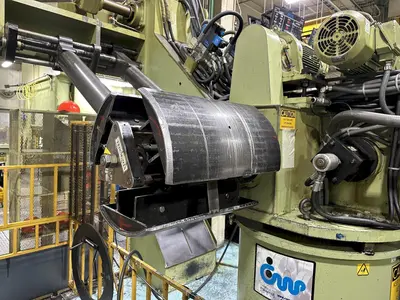

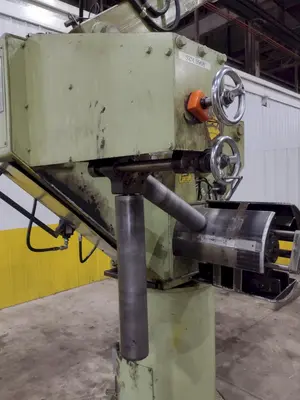

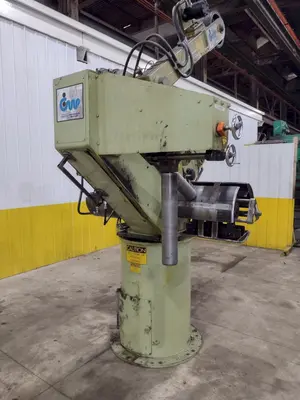

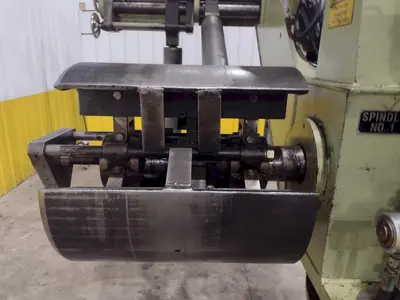

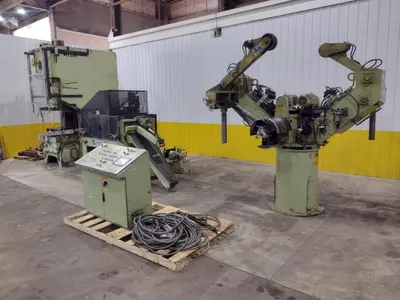

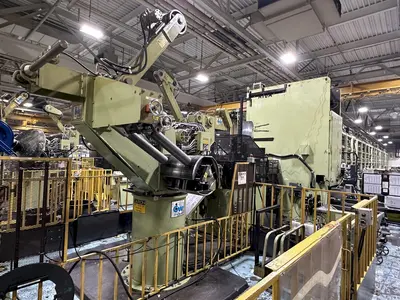

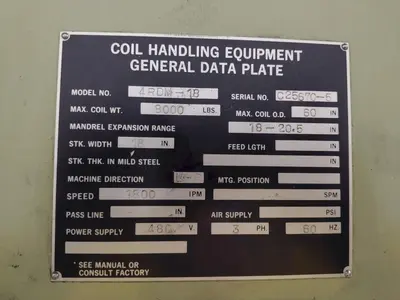

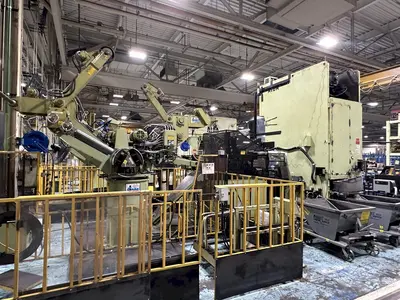

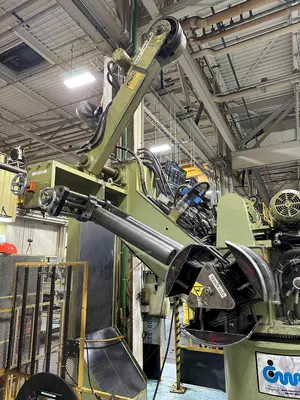

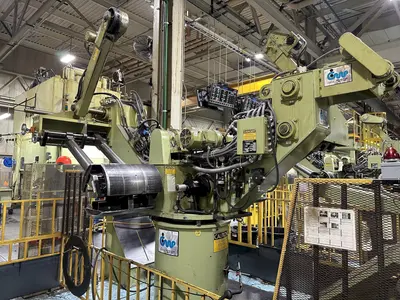

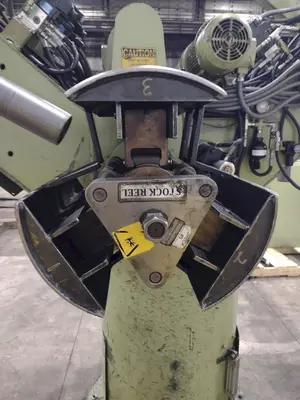

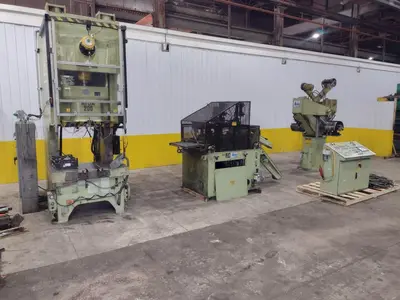

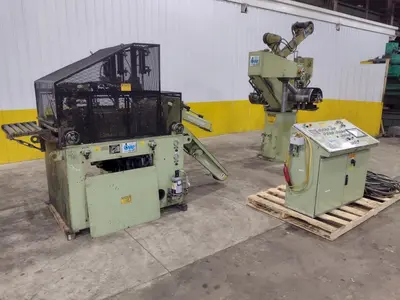

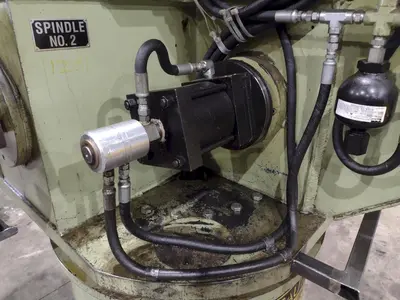

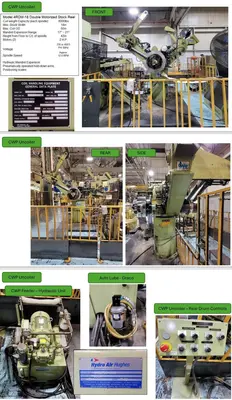

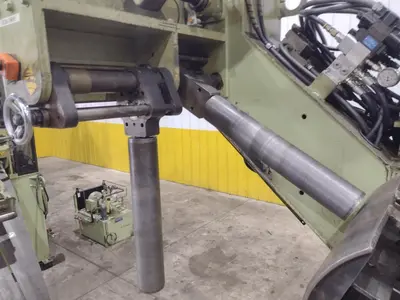

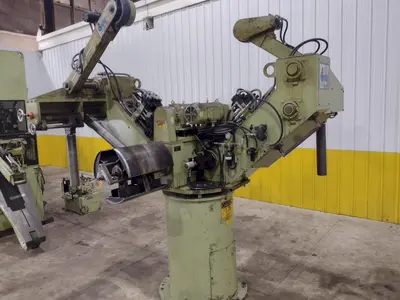

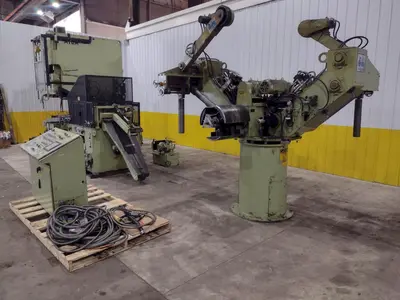

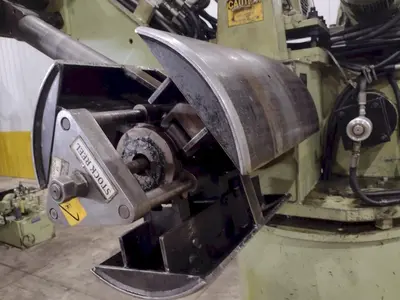

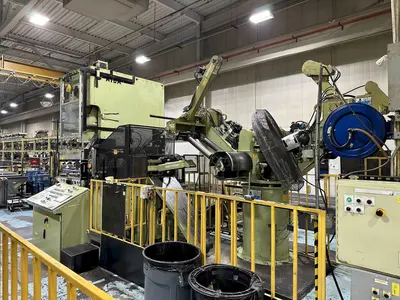

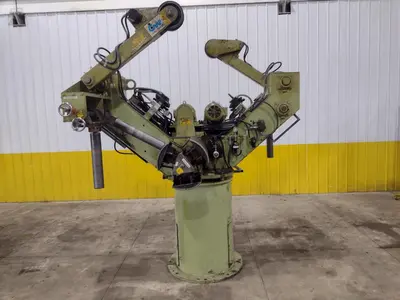

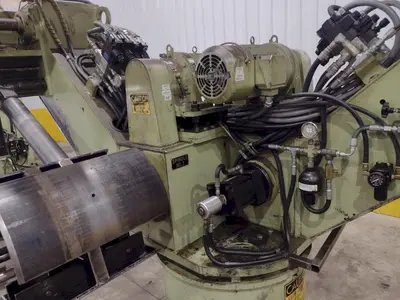

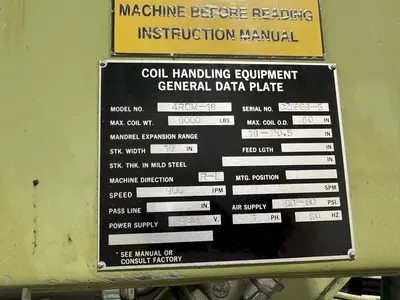

CWP UNCOILER - COIL REEL SERIAL ...................... C25670-5

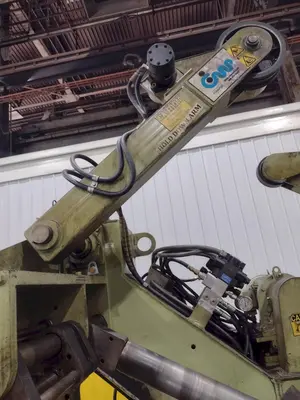

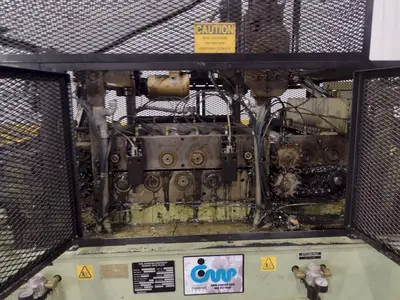

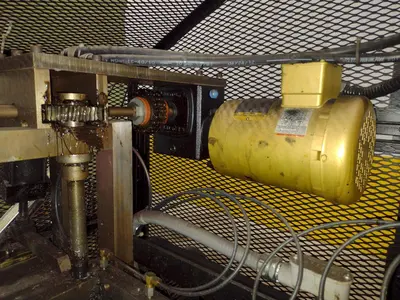

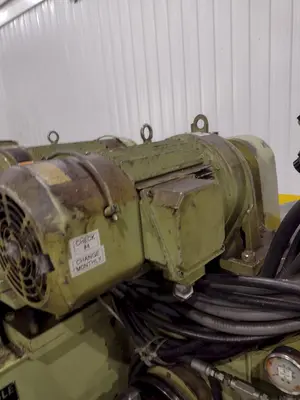

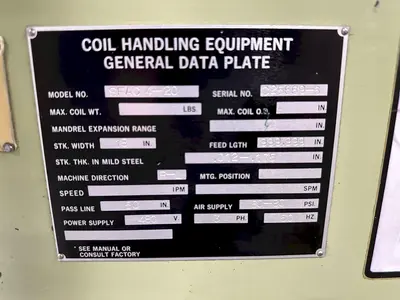

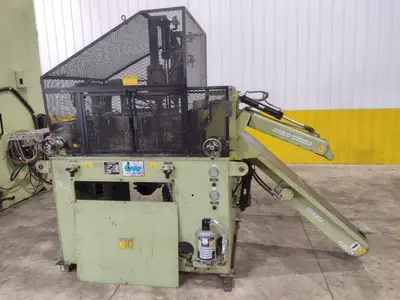

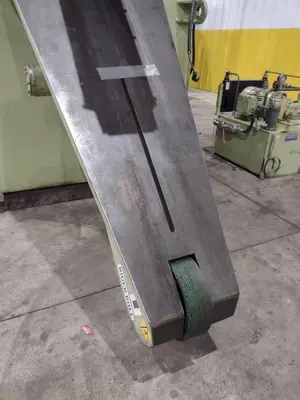

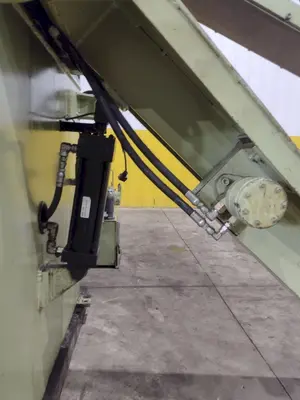

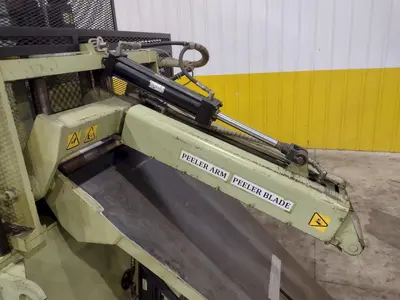

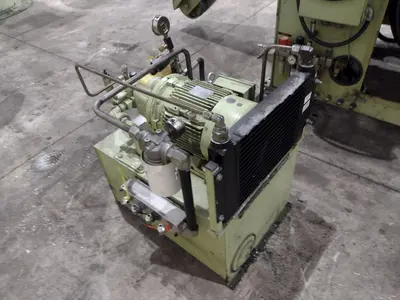

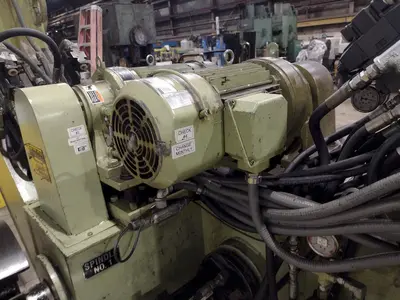

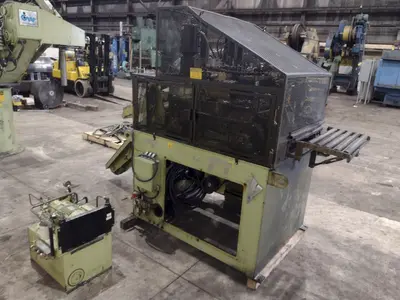

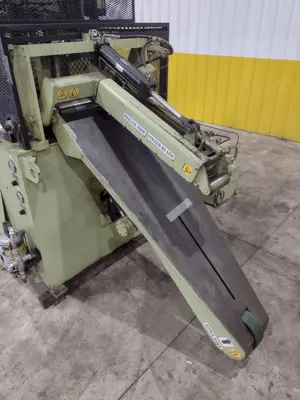

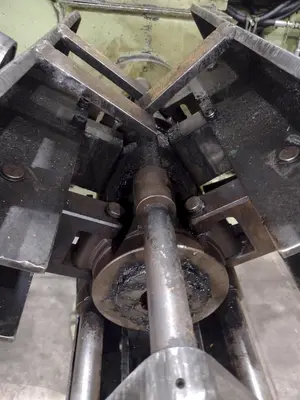

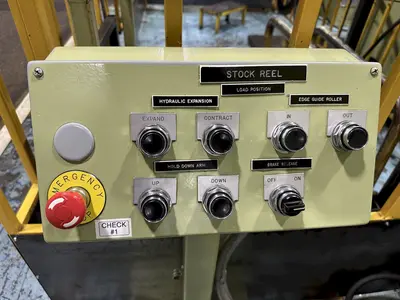

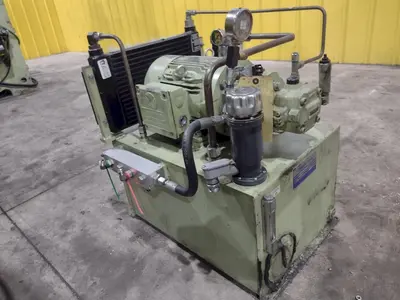

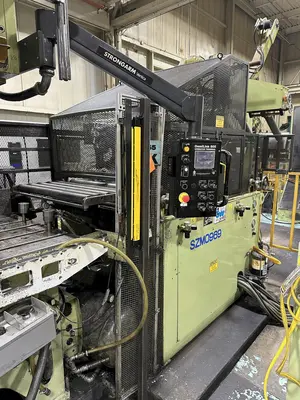

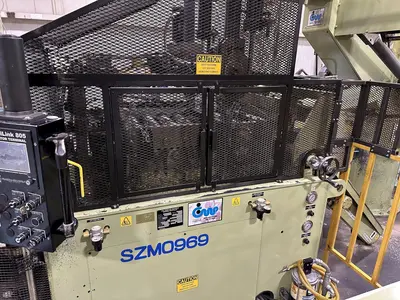

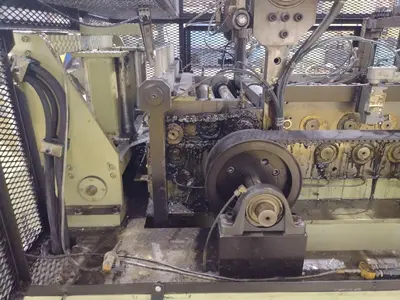

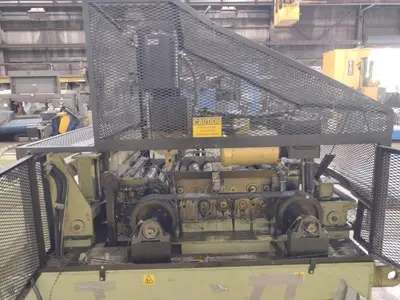

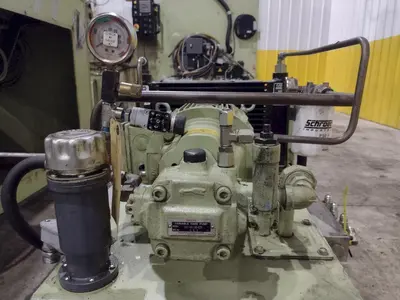

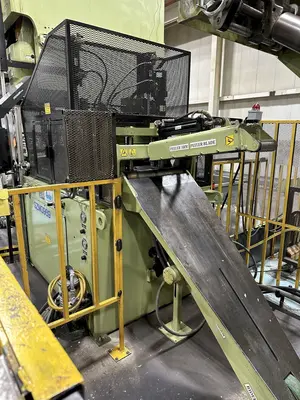

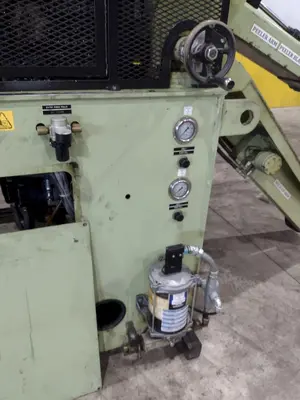

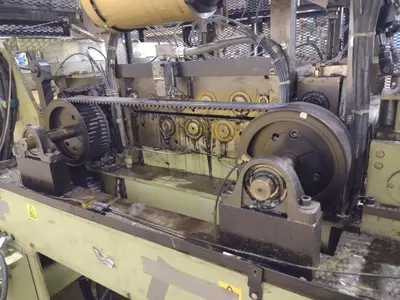

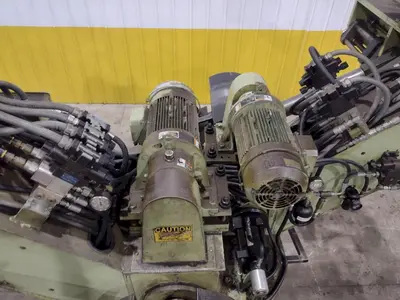

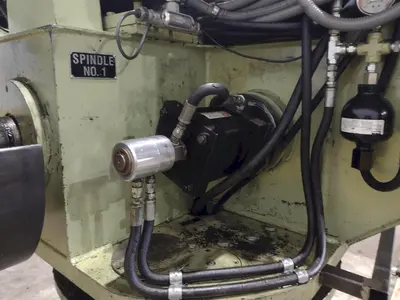

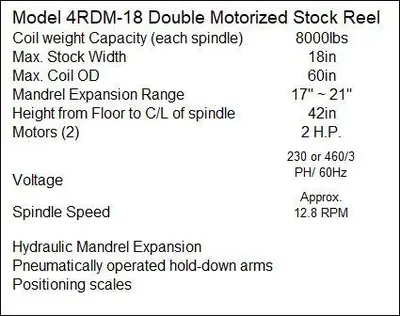

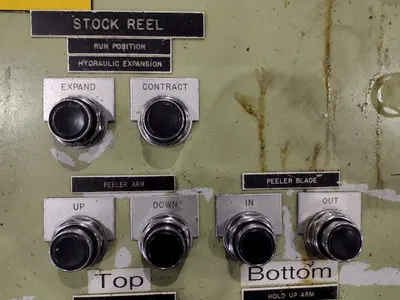

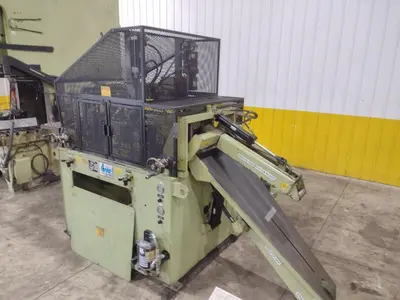

NEW ......................... 2012MODEL ....................... 4RDM-18COIL WEIGHT CAPACITY ........ 8,000 LBS PER SIDECOIL WIDTH .................. 18"COIL OD ..................... 60"COIL ID EXPANSION RANGE ..... 18" TO 20.5"EXPANSION ................... HYDRAULICFLOOR TO SPINDLE CENTER ..... 42"SPEED ....................... 1800 IPMDIRECTION ................... RIGHT TO LEFTPEELER ARM .................. YESHOLD DOWN ARMS .............. YES, PNEUMATICMOTORS ...................... 2 @ 2 HPCWP FEEDER / STRAIGHTENERSERIAL ...................... C25669-5

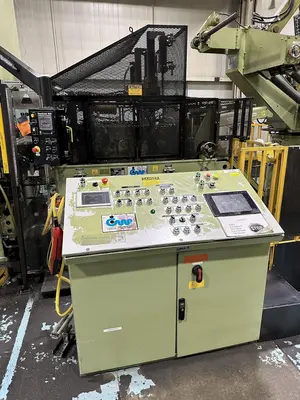

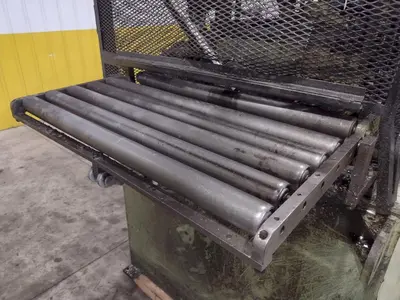

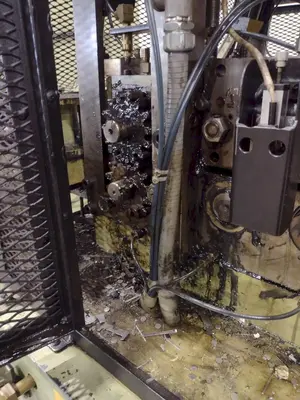

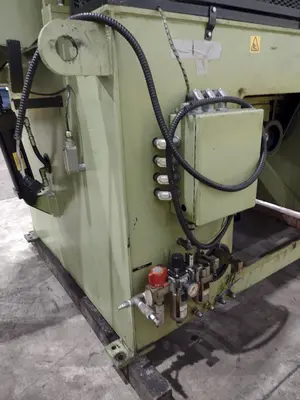

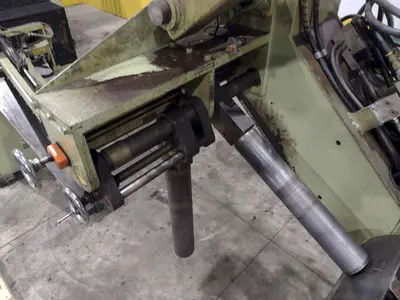

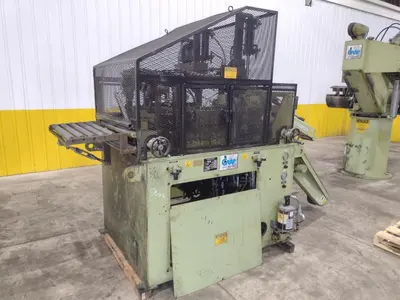

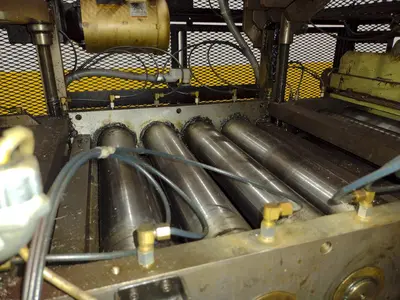

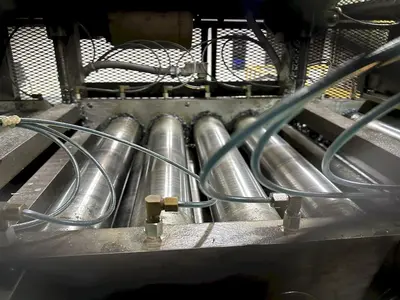

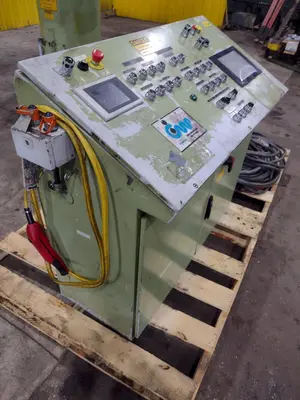

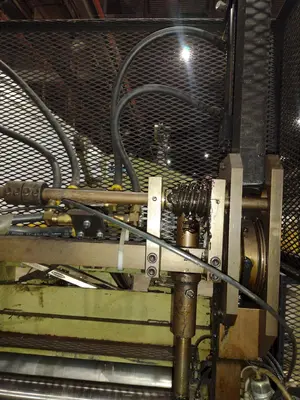

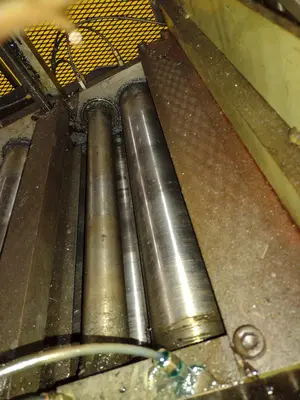

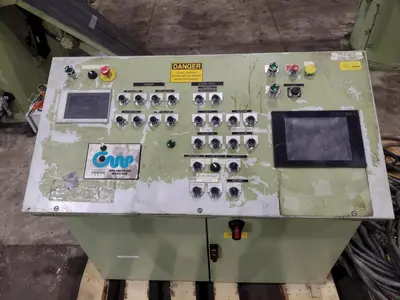

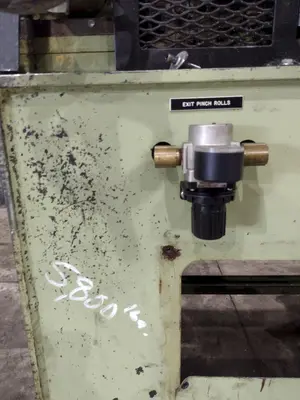

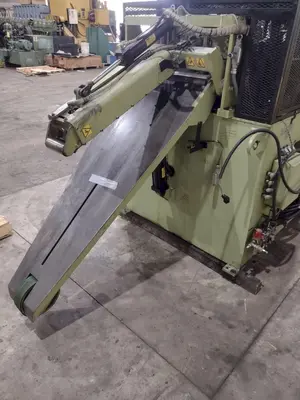

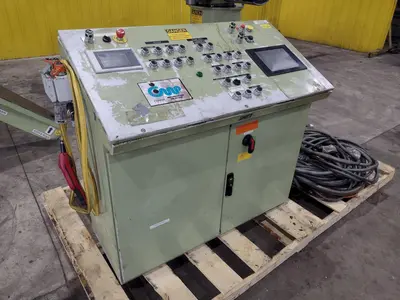

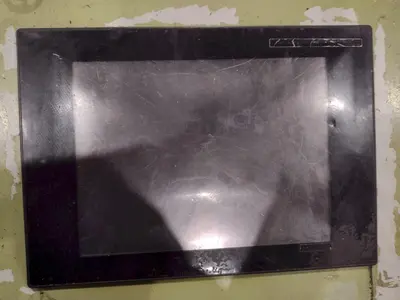

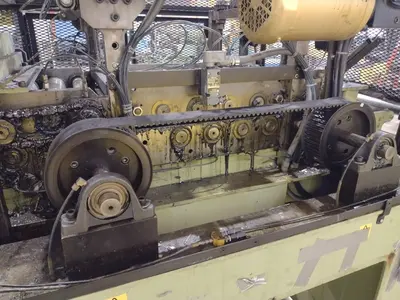

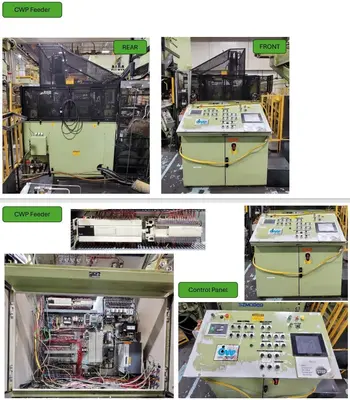

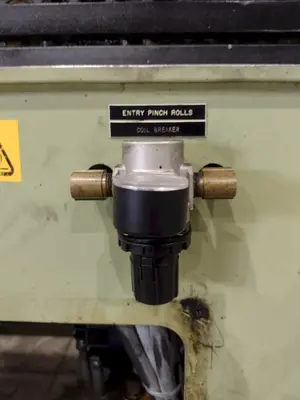

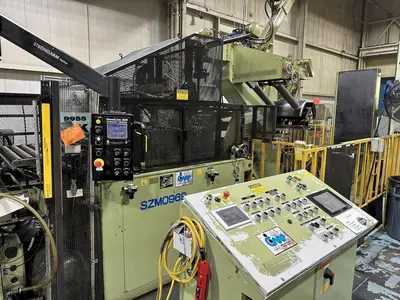

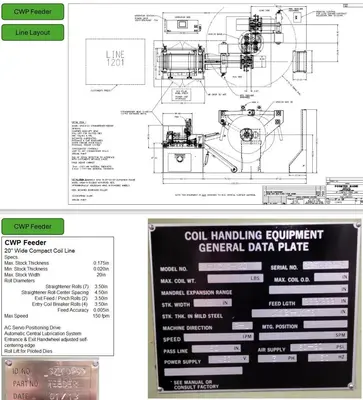

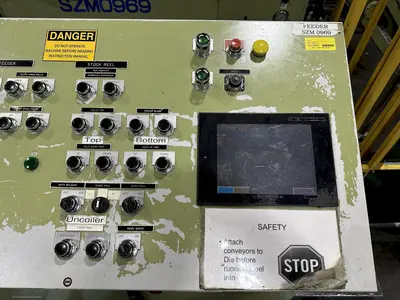

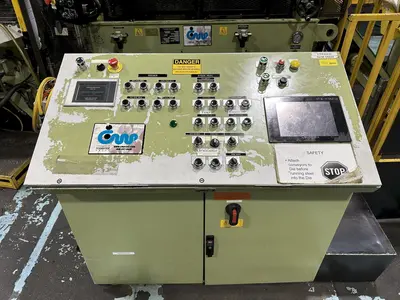

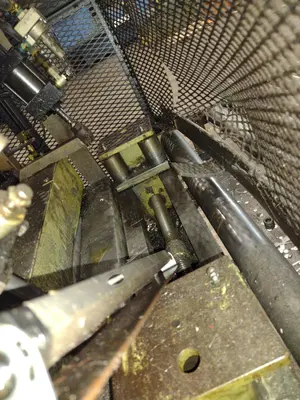

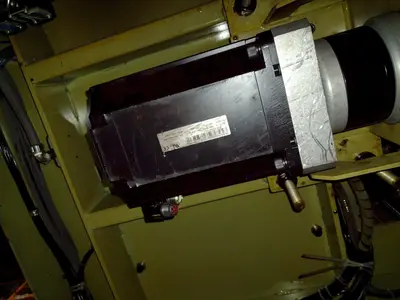

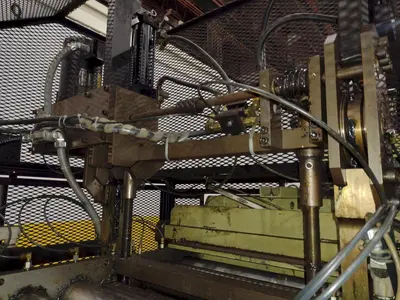

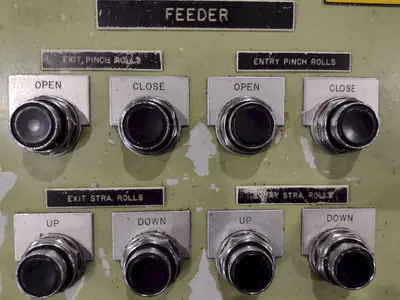

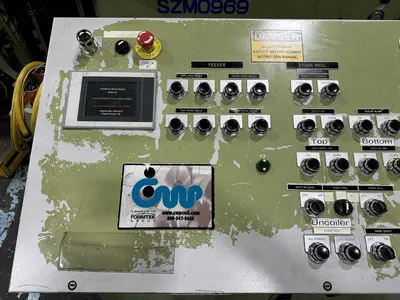

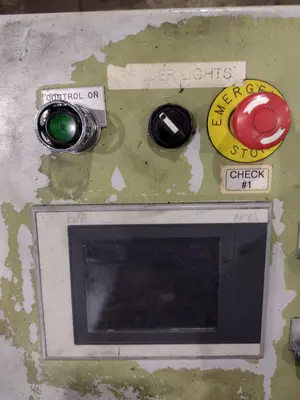

NEW ......................... 2012MODEL ....................... SFAC4-20STOCK WIDTH ................. 18"STOCK THICKNESS ............. .012" TO .175"STRAIGHTENING ROLLS ......... 7 (4 OVER 3)DIAMETER OF ROLLS ........... 3.5"ROLL CENTERS ................ 4.5"ENTRY & EXIT GUIDES ......... SELF CENTERINGENTRY BREAKER ROLLS ......... 4 X 3.5"EXIT FEED / PINCH ROLLS ..... 2 X 3.5"FEED ACCURACY ............... .005"SPEED ....................... 150 FPM MAXPASS LINE ................... 47"PEELER ARM .................. YESTHREADING TABLE ............. YESPOSITIONING DRIVE AC SERVO .. YESCENTRAL LUBE AUTOMATIC ...... YESTOUCH SCREEN OPERATOR CONTROL STATION
Brand
CWP
Type

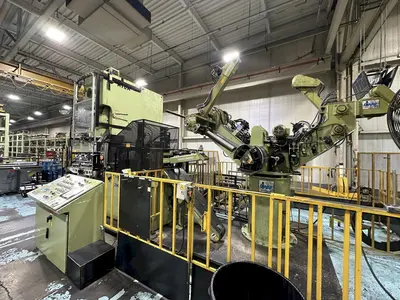

Coil Feed Lines
Stock No.
22211
