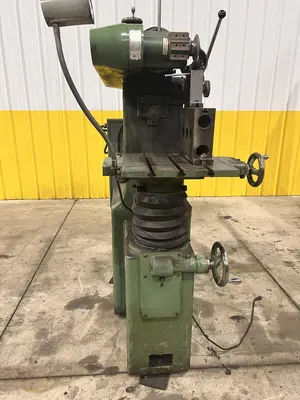

OLIVER ACE MODEL 300HD GRINDER
SERIAL ................................. ACE 1234
MODEL .................................. 300 HD
SWING .................................. 8"
DISTANCE BETWEEN CENTERS ............... 15"
AREA OF TABLE .......................... 16" X 16"
CROSS CARRIAGE TRAVEL .................. 14"
ANGULAR ADJUSTMENT OF CARRIAGE ......... 180 DEGREES
ANGULAR ADJUSTMENT OF HEAD ............. 180 DEGREES
ANGLE ADJUSTMENT OF TABLE IN VERTICAL .. 45 DEGREES
DISTANCE GRINDING WHEEL & TABLE ........ 7-3/4"
DISTANCE GRINDING WHEEL & BASE TABLE ... 16-3/4"
HORIZONTAL TRAVEL OF GRINDING UNIT ..... 7"
VERTICAL ADJUSTMENT OF TABLE ........... 12-1/2"
VERTICAL ADJUSTMENT OF GRINDING WHEEL .. 1-1/2"
MOTOR .................................. 1 HORSEPOWER
