SERIAL ............................... 4A 5904
MODEL ............................ 4A
YEAR NEW ......................... 1980
AREA OF BASE ..................... 89" X 50"

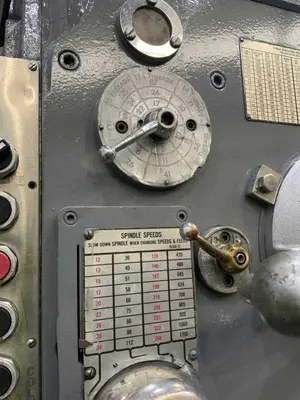

SPINDLE SPEEDS ................... (36) 12 TO 1200 RPM
FEEDS ............................ (18) .004 TO .125 IPR
THREADS .......................... 8, 11-1/2, 14, & 18 TPI
SPINDLE TRAVEL ................... 20"
DIAMETER OF SPINDLE .............. 4"
TAPER ............................ #6 MORSE TAPER
DISTANCE SPINDLE TO COLUMN ....... 13-1.4" MIN. TO 96" MAXIMUM
TRAVEL OF HEAR ON ARM ............ 82-3/4"
TRAVEL OF ARM ON COLUMNS ......... 43-1/2
POWER ARM CLAMPING ............... YES
POWER HEAD TRAVEL ................ YES
POWER ELEVATION .................. YES
COOLANT .......................... YES
MOTOR ............................ 40 HORSEPOWER

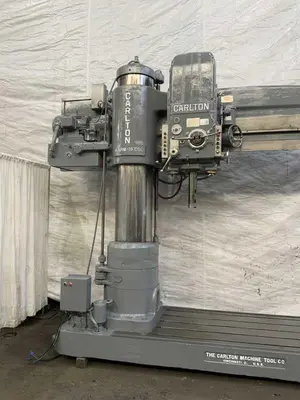

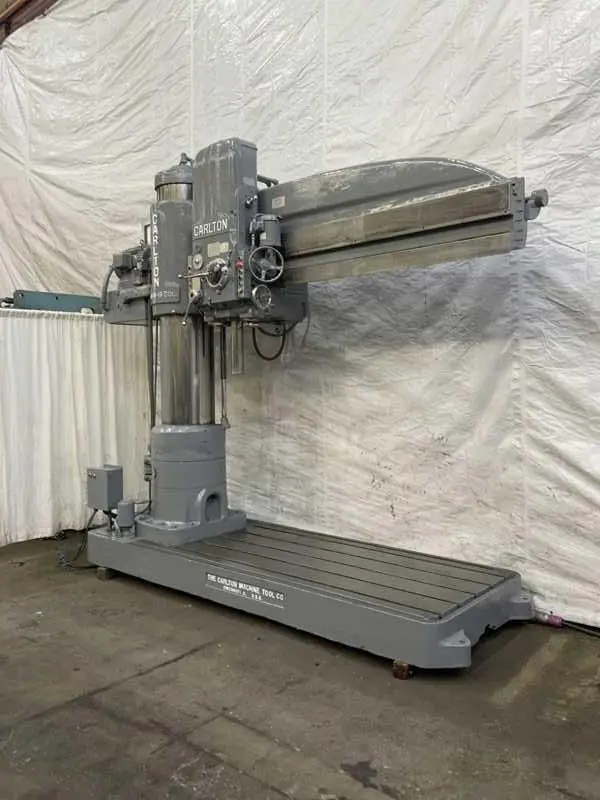

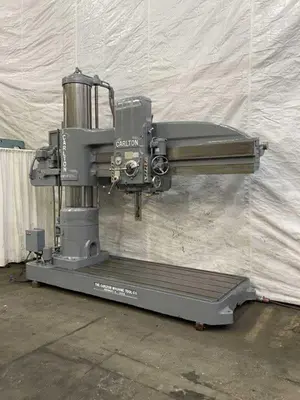

Brand
CARLTON
Type
Drills, Radial
Stock No.
22071
