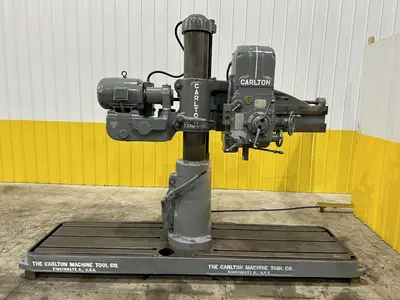

SERIAL .......................... 1A-2926
MODEL ........................... 1A
SIZE ............................ 3' X 9"
COLUMN DIAMETER ................. 9"
ARM LENGTH ...................... 36"

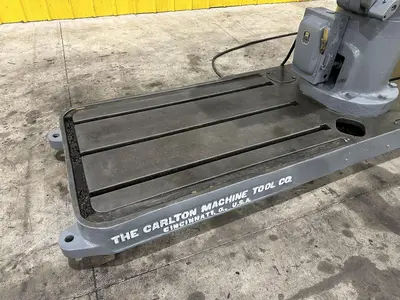

DUAL BASE ....................... YES
AREA OF EACH BASE ............... 31" X 39 1/2"
SPINDLE SPEEDS .................. (12) 80 TO 1500 RPM
FEEDS ........................... (12) .004 TO .0025 IPR
TAPER IN SPINDLE ................ #4 MT
DIAMETER OF SPINDLE ............. 2-1/2"
SPINDLE TRAVEL .................. 12"
TRAVEL OF ARM ON COLUMN ......... 28"
TRAVEL OF HEAD ON ARM ........... 29"
DISTANCE SPINDLE TO BASE ........ 28" MINIMUM, 56" MAXIMUM
DISTANCE SPINDLE TO COLUMN ...... 9" MINIMUM, 36" MAXIMUM
POWER ELEVATION ................. YES
COOLANT ......................... YES
MOTOR ........................... 5 HORSEPOWER
