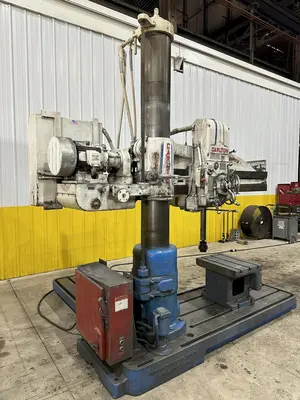

SERIAL ........................... 1A4301
MODEL ............................ 1A
ARM LENGTH X COLUMN DIAMETER ..... 5' X 11"
AREA OF BASE (T-SLOTTED) ......... 66" X 36"
AUXILLARY BASE ................... 90 DEGREE
SPINDLE SPEEDS ................... (12) 60 TO 1500 RPM
SPINDLE FEEDS .................... (6) .004 TO .025 IPR
SPINDLE STROKE ................... 12"
SPINDLE DIAMETER ................. 2-1/2"
SPINDLE TAPER .................... #4 MT
SPINDLE TO COLUMN ................ 9" TO 60"
SPINDLE TO BASE .................. 52" TRAVEL; 14-3/4" TO 66-1/4"
BASE HEIGHT ...................... 8"
POWER ELEVATION .................. YES
POWER COLUMN CLAMPING ............ YES
COOLANT .......................... YES
SPINDLE MOTOR .................... 5 HORSEPOWER
