SERIAL ...................... 151-61195

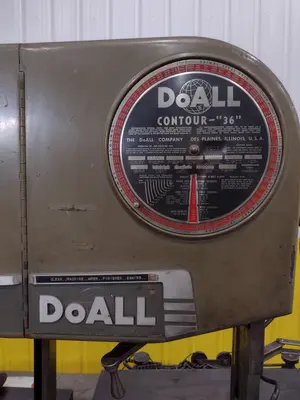

MODEL ....................... 3613-20
DEPTH OF THROAT ............. 36"
UNDER GUIDE ................. 13"
BLADE SPEEDS, VARIABLE ...... 0 TO 5200 FPM
AREA OF TABLE ............... 26" X 26"
TABLE TILTS RIGHT ........... 45 DEGREE
TABLE TILTS LEFT ............ 10 DEGREE
TABLE LOAD CAPACITY ......... 500#
WIDTH OF BLADE .............. 1/16" TO 1"
BLADE LENGTH (36" THROAT) ... 175"
BLADE LENGTH (20" THROAT) ... 125"
BLADE WELDER ................ YES
MOTOR ....................... 3 HORSEPOWER
