RETROFITTED ................ 2018, NEW ELECTRICAL & FANUC CONTROL
SERIAL ..................... 0426

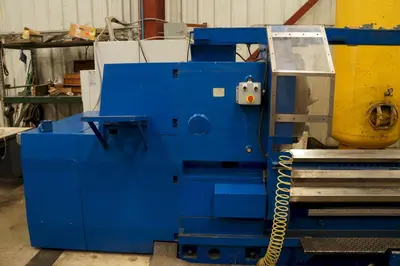

MODEL ...................... LH55-N
SWING OVER BED.............. 43"
SWING OVER CROSS SLIDE ..... 26"
MAXIMUM TURNING LENGHT ..... 157"
X-AXIS TRAVEL .............. 26"
Z-AXIS TRAVEL .............. 158"
SPINDLE SPEEDS ............. 20 TO 1200 RPM
SPINDLE BORE ............... 4.13"
SPINDLE NOSE ............... A2-11
SPINDLE DRIVE .............. 45 / 37 KW (60 / 49 HP)
Quill Diameter ............. 5.91"
Quill Stroke ............... 7.887"
Quill Taper ................ #6 MT
CONTROL .................... FANUC 0iTD CNC
HYDRAULIC CHUCK ............ 4-JAW
CHIP CONVEYOR .............. YES
COOLANT SYSTEM ............. YES
LUBRICATION SYSTEM ......... YES
TOOL POST .................. YES
