SERIAL .......................... 655395
MODEL ........................... 25P
LOAD CAPACITY ................... 2,500 lbs

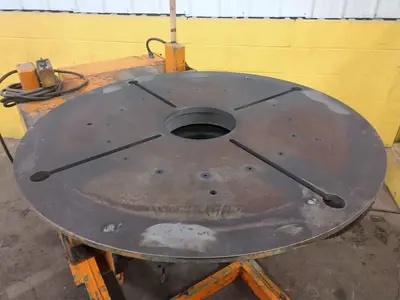

TABLE DIAMETER .................. 32"
ROTATIONAL SPEED (VARIABLE) ..... 0.08 TO -1.55 rpm
ROTATIONAL TORQUE ............... 15,000 IN LBS
TILT TORGUE ..................... 30,000 IN LBS

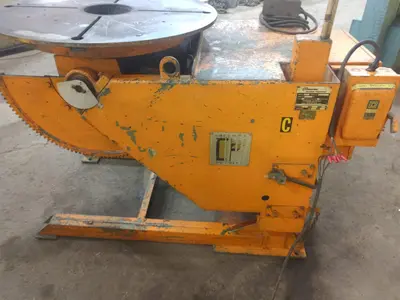

TILT RANGE DEGREE ............... 0 TO 135°
DISTANCE FROM FLOOR TO TABLE .... 34 TO 52" MAXIMUM
TABLE HEIGHT ADJUSTMENT ......... 4 @ 6"
POWER TILT ...................... YES

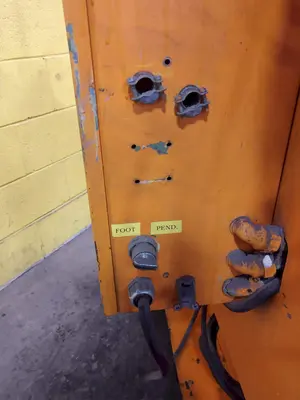

PENDANT CONTROL ................. YES
TILT MOTOR ...................... 3/4 HORSEPOWER
ROTATION MOTOR .................. 3/4 HORSEPOWER
