SERIAL ......................... 01166

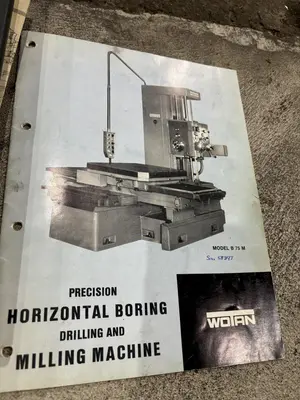

MODEL .......................... #B75
SPINDLE DIAMETER ............... 3"
TAPER IN SPINDLE ............... #40
SPINDLE QUILL TRAVEL ........... 23.5"
SIZE OF TABLE .................. 31.5″ x 39.5″
VERTICLE HEAD TRAVEL............ 34"
TABLE TRAVEL ................... 48"
LONGITUDINAL SADDLE TRAVEK ..... 31.5"
SPINDLE SPEEDS ................. (20) @ 15 to 1,200 RPM
THREADING CAPABILITY ........... 3 TO 48 TPI
CAPACITY ....................... 4,000 LBS
BUILT IN ROTARY TABLE .......... YES
RIGHT ANGLE HEAD ............... YES
PENDANT CONTROL ................ YES
3-AXIS DIGITAL READOUT ......... YES
MOTOR .......................... 10HP/480VAC/3HP
