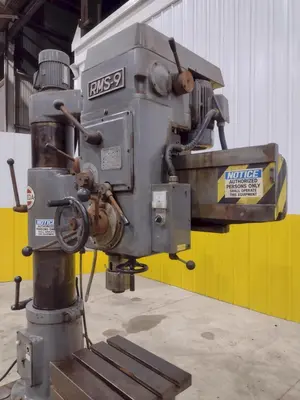

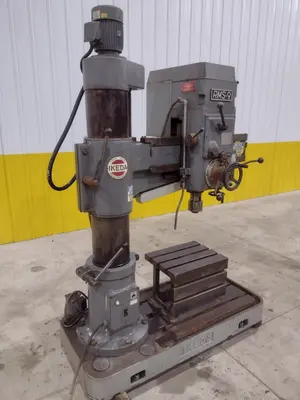

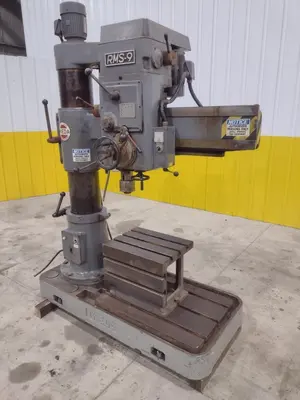

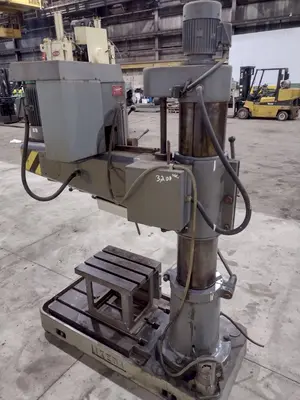

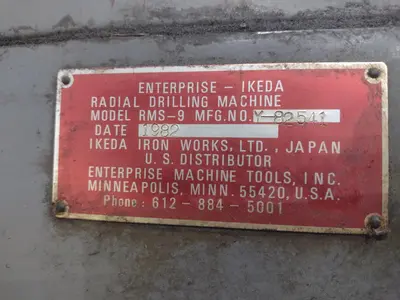

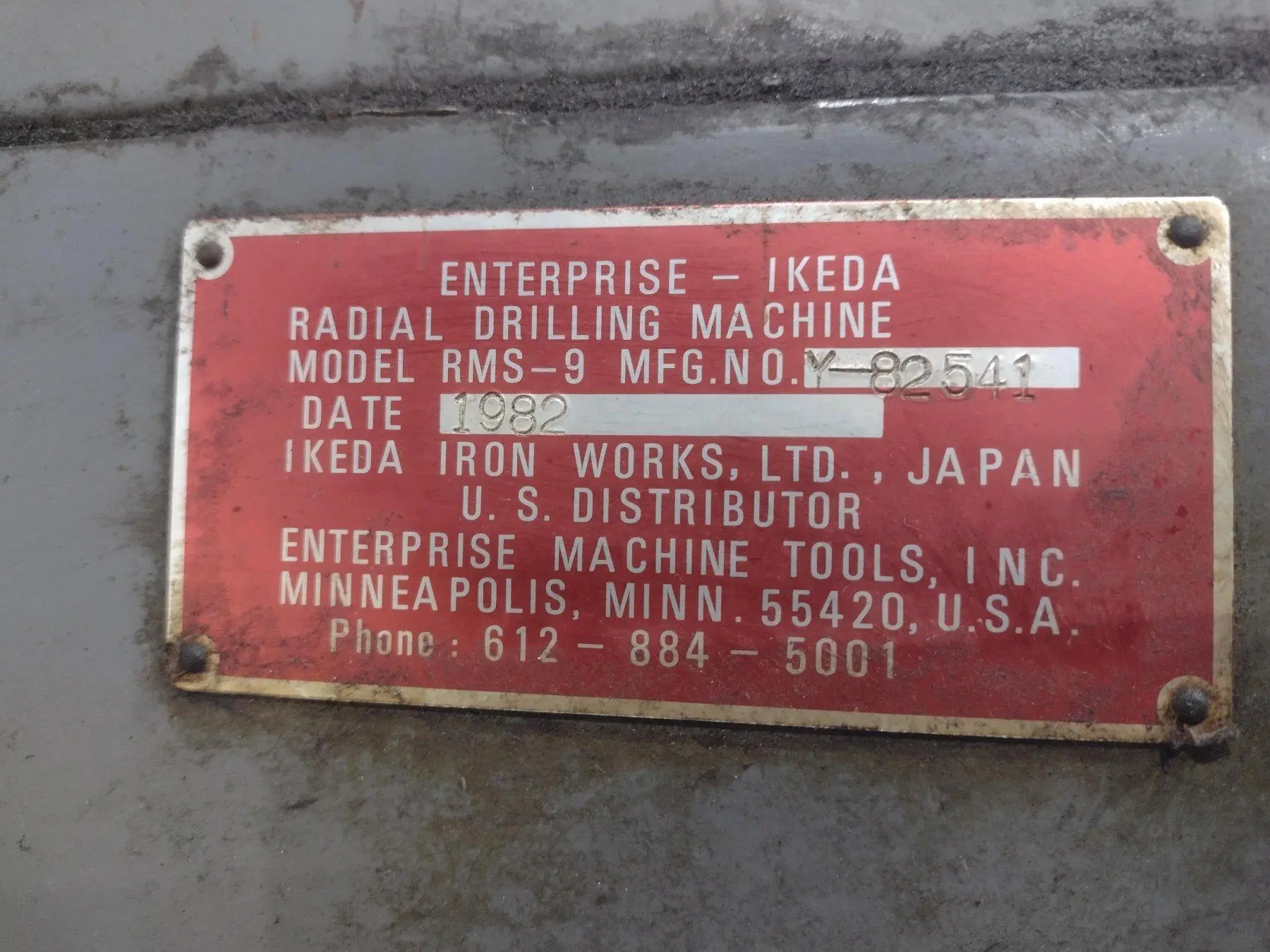

MODEL ...... RMS-9
SERIAL ..... Y 82541
YEAR ....... 1982
YEAR ....... 1982
YEAR ....... 1982
Arm Length 3'
Column Diameter 9"
Vertical Spindle Stroke 9"
Spindle-Nose to Base, Minimum 11.5"
Spindle-Nose to Base, Maximum 43"
Column-Face to Spindle, Minimum 11.75"
Column-Face to Spindle, Maximum 3'
Base Working Surface, W x L 23" x 37"
Base Height 6.25"
Spindle Quill Diameter 3.31"
Spindle Nose Diameter 2.25"
Spindle Taper #4 MT
(9) Spindle Speeds, Range 50 to 1500 RPM
(4) Spindle Feeds, Range .003 to .015 IPR

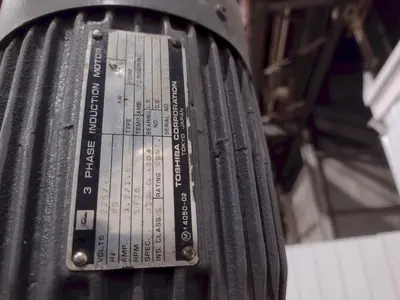

Motor, Horsepower 3 HP
Arm Elevating Motor 1 HP

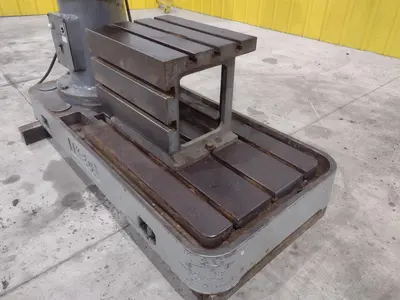

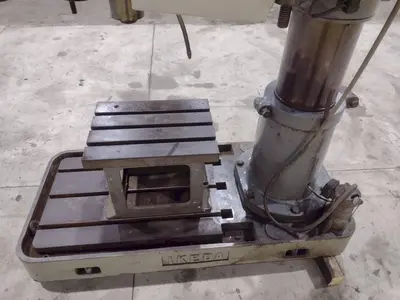

Plain Box Table
Tapping Capabilities

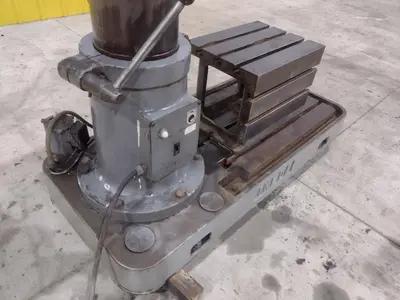

Plain Type Base
Power Arm Elevation
Coolant System (Built-In Base)
Specifications
