SERIAL ..................... 3009
US NAVY REBUILD ............ 1991

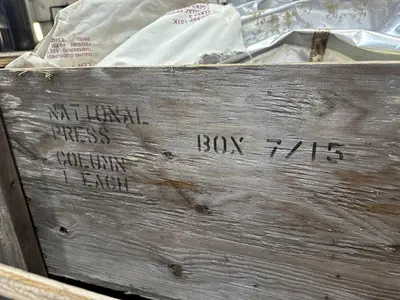

NAVY PACKED & STORED ....... 2013
MODEL ...................... 300T
TONNAGE CAPACITY ........... 3000 TON
SWAGING CAPACITY:
SWAGE SOCKETS .............. 3"
STANDARD SLEEVES ........... 4"
HEAVY DUTY SLEEVES ......... 1-1/8"
DUPLEX STEEL SLEEVES ....... 1"
ALUMINUM DUPLEX SLEEVES .... 1-1/2"
STROKE OF RAM .............. 13-1/2"
FLOOR TO PLATEN (MINIMUM) .. 38-1/2 MIN
DAYLIGHT BETWEEN PLATENS ... 27.62"
LENGTH BETWEEN COLUMNS ..... 48" L-R, 28" F-B
CONTROL STATION ............ YES
OIL RESERVOIR .............. 145 GALLONS
HYDRAULIC UNIT & PUMP ...... RACINE HYDRAULICS
HYDRAULIC PUMP MOTOR ....... 45 HP
TONNAGE CAPACITY ........... 3000 TON
SWAGING CAPACITY:
SWAGE SOCKETS .............. 3"
STANDARD SLEEVES ........... 4"
HEAVY DUTY SLEEVES ......... 1-1/8"
DUPLEX STEEL SLEEVES ....... 1"
ALUMINUM DUPLEX SLEEVES .... 1-1/2"
STROKE OF RAM .............. 13-1/2"
FLOOR TO PLATEN (MINIMUM) .. 38-1/2 MIN
DAYLIGHT BETWEEN PLATENS ... 27.62"
LENGTH BETWEEN COLUMNS ..... 48" L-R, 28" F-B
CONTROL STATION ............ YES
OIL RESERVOIR .............. 145 GALLONS
HYDRAULIC UNIT & PUMP ...... RACINE HYDRAULICS
HYDRAULIC PUMP MOTOR ....... 45 HP
Features of National Hydraulic Swaging Machines offer a number of advantages for high production sling shops:
A dual hydraulic system which combines the use of high speed and low pressure to bring dies into position; and the
low speed and high pressure necessary for ideal swaging control.
Adjustable tonnage control, so tonnage can be set to match die block Working Load Limit.
Four column wide stance which provides the operator ample working clearance between columns and a large area for in-
process sling storage.
Vertical swage action which gives an equalized press on the fitting to produce uniform high quality.
Self locating spring locks snap the shoe-type dies into place for quick set-up and change.

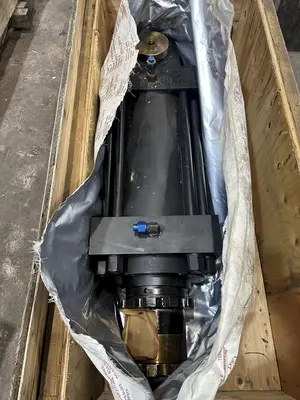

The National four column wide stance Hydraulic Swaging Machines, each equipped with an up-acting ram, have two
side cylinders for fast approach and return of the main ram.
