500 TON HPM (PTI REBUILT) 36" X 36" BED HYDRAULIC PRESS: STOCK #20202
SERIAL ..................... 55876-7-95
YEAR REBUILT ............... 1995 BY P.T.I.
CAPACITY ................... 500 TONS
STROKE ..................... 24"
DIAMETER OF RAM ............ 22"
BED TO RAM ................. 46" (STROKE UP, NO BOLSTER)
DAYLIGHT ................... 30"
AREA OF BED ................ 36" X 36"
AREA OF RAM ................ 36" X 36"
TIE ROD FRAME DESIGN ....... YES
TIE ROD DIAMETER ........... 6"
WIDTH OF WINDOWS ........... 18"

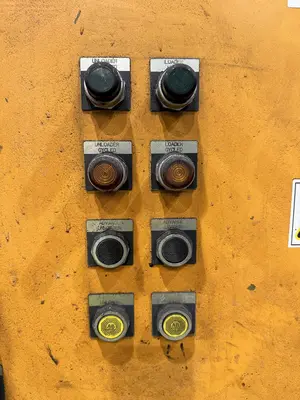

PALM BUTTON TRIPS .......... YES
RAM JOG BUTTON ............. YES
RUN MODES .................. SINGLE / CONTINUOUS / AUTO
TONNAGE DIAL INDICATOR ..... YES
FRAME CONSTRUCTION ........ TIE-ROD
FLOOR STANDING ............. YES,
NO PIT REQUIRED
HYDRAULIC PUMP & RESEVOIR .. YES, TOP MOUNTED
PUMP MOTOR ................. 100 HP
