SERIAL ...................... 1248
MODEL ....................... 4 B
SLIDE PLUNGER CAPACITY ...... 170 TON
BLANKHOLDER CAPACITY ........ 115 TON
SLIDE PLUNGER STROKE ........ 14.5"
BLANKHOLDER STROKE .......... 6.5"
SLIDE PLUNGER SHUT HEIGHT ... 20"
BLANKHOLDER SHUT HEIGHT ..... 17"
ADJUSTMENTS ................. 6"
BED AREA .................... 34" L-R X 33" F-B
RUN MODES ................... INCH, SINGLE, CONT
PROGRAMMABLE RUN MODE ....... YES

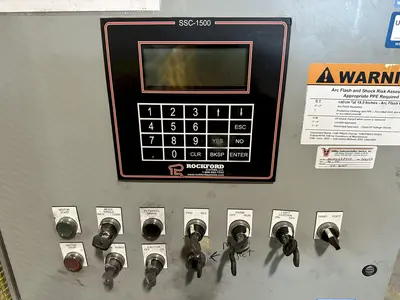

CONTROLS .................... ROCKFORD SSC-1550
HAND & FOOT TRIP ............ YES
LIGHT CURTAINS .............. YES
KNOCKOUT .................... YES
AIR CLUTCH .................. YES
AIR BRAKE ................... YES
LUBE SYSTEM ................. YES
STROKE COUNTER .............. YES
E-STOP BUTTON ............... YES
FLOOR STANDING .............. YES
MOTOR ....................... 15 HP
