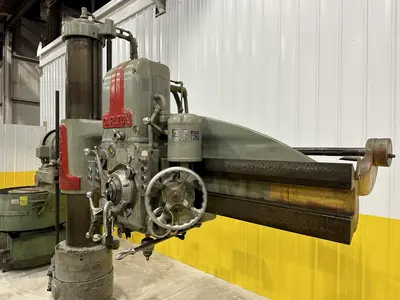

SERIAL ...................... 1A-3671
MODEL ....................... 1A
AREA OF BASE ................ 66" X 36"
SPINDLE SPEEDS .............. (12) 80 TO 2000 RPM
FEEDS ....................... (6) .004 TO .025 IPR
SPINDLE TRAVEL .............. 12"
DIAMETER OF SPINDLE ......... 2-1/2"
TAPER IN SPINDLE ............ #4MT
DISTANCE SPINDLE TO COLUMN .. 9" MINIMUM, 60" MAXIMU
DISTANCE SPINDLE TO BASE .... 24" MINIMUM, 54" MAXIMUM
POWER ELEVATION ............. YES
POWER COLUMN CLAMP .......... YES
COOLANT ..................... YES
MOTOR ....................... 5 HORSEPOWER
