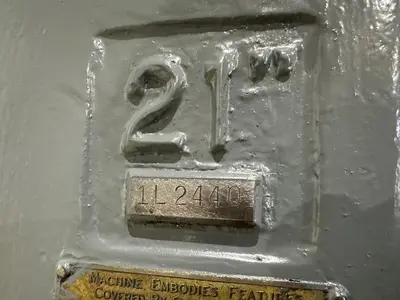

SERIAL ............................. 1L2440

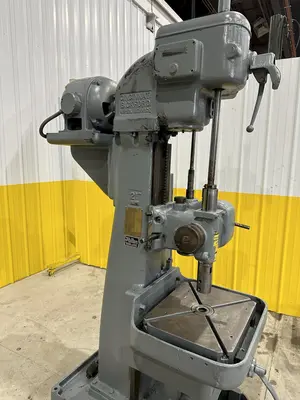

MODEL .............................. 1L BOX COLUMN
DEPTH OF THROAT .................... 10-1/2"
DIAMETER OF SWING AWAY TABLE ....... 19"
SPINDLE SPEEDS ..................... (9) 150 TO 3000 RPM
SPINDLE FEEDS ...................... .004, .008, .014, .020 IPR
SPINDLE TRAVEL ..................... 10"
TAPER IN SPINDLE ................... #4 MT
DIAMETER OF SPINDLE ................ 2-3/4"
AREA OF BASE ....................... 20-1/2" X 17-1/2"
TRAVEL OF HEAD ON COLUMN ........... 12"
VERTICAL TRAVEL OF TABLE ........... 18"
DISTANCE SPINDLE TO TABLE .......... 0" MINIMUM TO 30" MAXIMUM
DISTANCE SPINDLE TO BASE ........... 32" MINIMUM TO 44" MAXIMUM
FORWARD AND REVERSE ................ YES
MOTOR .............................. 3 HORSEPOWER
BrandCINCINNATI BICKFORD
TypePresses, Drill
Stock No.20046
