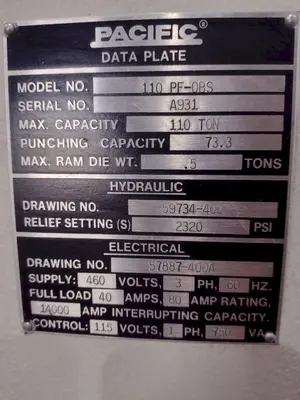

SERIAL ................. A931
MODEL .................. 110-PF-OBS
CAPACITY ............... 110 TON
STROKE ................. 10"
SHUT HIEGHT ............ 8.25"

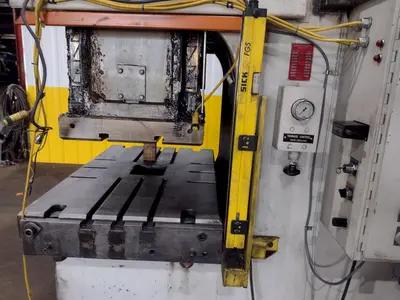

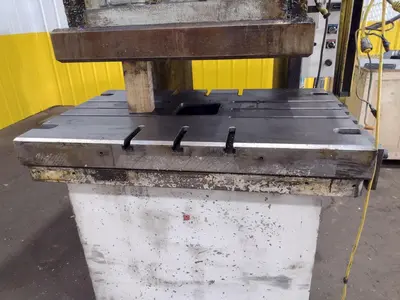

BED BOLSTER ............ 27" X 42" X 4" THICK
FLOOR TO BOLSTER TOP ... 40"
THROAT ................. 14.5"

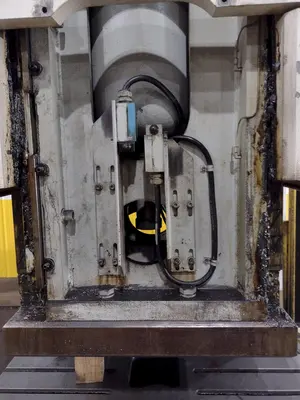

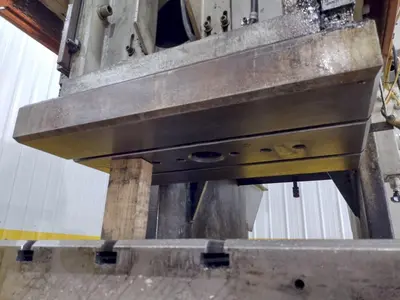

SLIDE BOLSTER .......... 21" X 29" X 3.75"
BETWEEN FRAMES ......... 29"
CUSHION STROKE ......... 6"
OIL COOLER ............. YES
OIL RESERVOIR .......... 10 GALLON
MOTOR .................. 30 HP
KNOCK OUT CYLINDER
AUTO LUBE

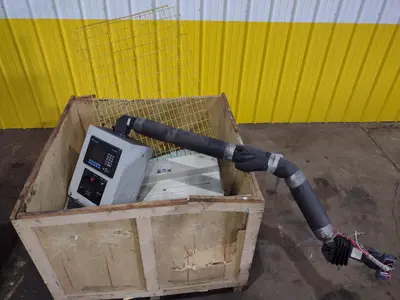

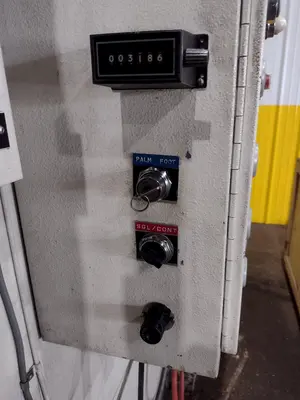

CONTROLS
PALM BUTTONS

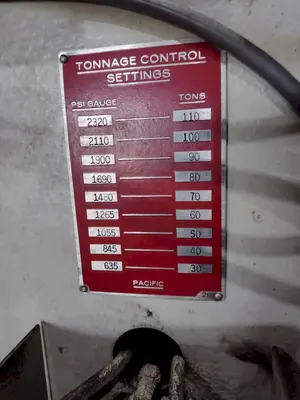

TONNAGE INDICATOR
Specifications
