SERIAL ........................... 6E-778
CAPACITY ......................... 6' X 17"
WORKING SURFACE OF BASE .......... 82" X 50"

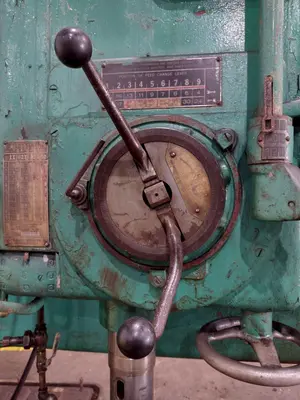

SPINDLE SPEEDS ................... (30) 8 TO 1000 RPM
FEEDS ............................ (18) .004 TO .125 TPR
THREADS .......................... 8, 10, 12, 14
SPINDLE TRAVEL ................... 18
TAPER IN SPINDLE ................. #6
DIAMETER OF SPINDLE .............. 4-1/4"
SPINDLE TO COLUMN ................ 12" MIN, 72" MAX
DISTANCE SPINDLE TO BASE ......... 36" MIN, 78" MAX
TRAVEL OF ARM ON COLUMN .......... 42"
TRAVEL OF HEAD ON ARM ............ 60"
POWER HEAD CLAMPING .............. YES
POWER HEAD TRAVERSE .............. YES
POWER HEAD TRAVERSE .............. YES

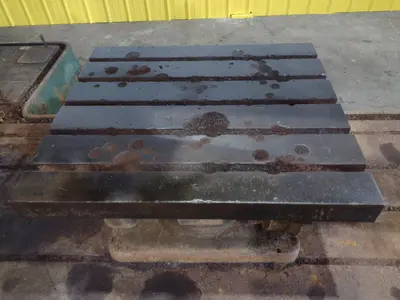

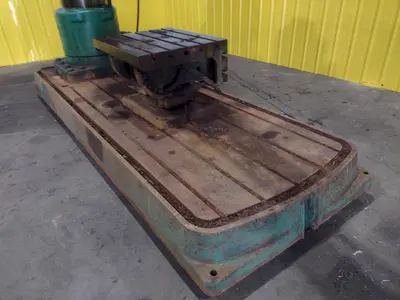

Tilting Box Table ................ 28" x 38" x 30"

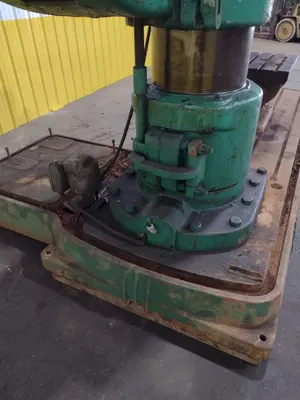

L-Shape Base ..................... 52" x 142"
MOTOR ............................ 20 HORSEPOWER
