SERIAL ..................... 23750

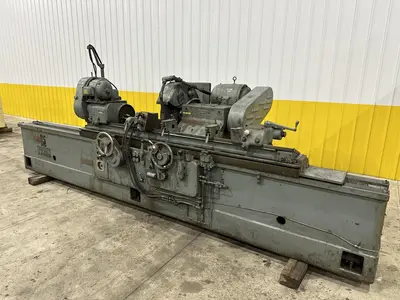

MODEL ...................... 10X72 CTU
SWING OVER TABLE ........... 10"
GRINDING DIAMETER .......... "
DISTANCE BETWEEN CENTERS ... 72"

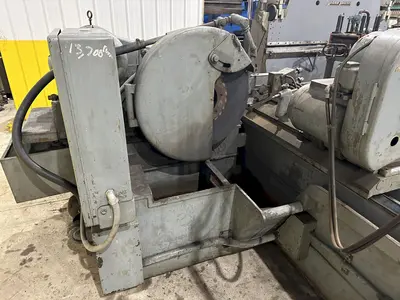

GRINDING WHEEL SIZE ........ 24" X 3" X 8"
GRINDING WHEEL SPEED ....... 800 RPM

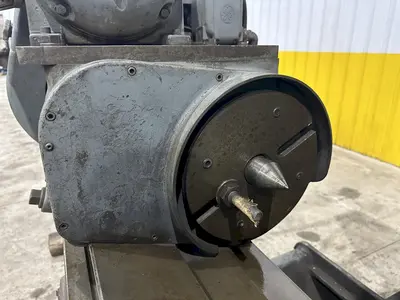

WORKHEAD SPEEDS ............ 50-80-125-200 RPM
TABLE LONGITUDINAL FEEDS ... 8 to 264 IPM
AUTOMATIC INFEED ........... YES
ADJUSTABLE DWELL CONTROL ... YES
TABLE MOUNTED DRESSER ...... YES
COOLANT .................... YES
FOLLOW RESTS ............... YES

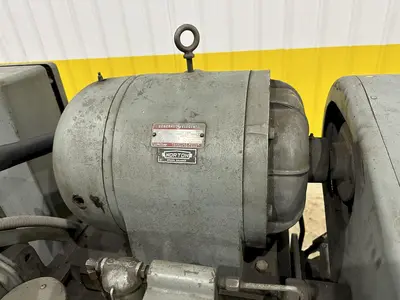

SPINDLE MOTOR .............. 40 HP
WORKHEAD MOTOR ............. 3 HP
FEED MOTOR, HYDRAULIC ...... 3 HP
