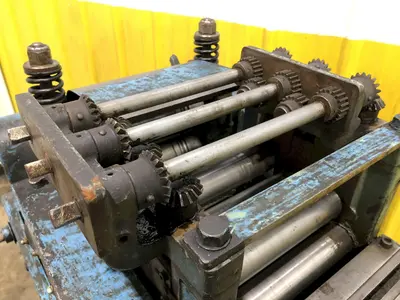

8" X .018" LITTELL MODEL #308-7PDS COIL STOCK STRAIGHTENER: STOCK #17297
SERIAL .......................... 59891-56
MODEL ........................... 308-7PDL
STRAIGHTENER .................... 7 ROLL, 3 OVER 4
CAPACITY, MILD STEEL ............ 8" X .041"
CAPACITY ........................ 3" X .050"
DIAMETER OF ROLLS ............... 1-3/4"
LENGTH OF ROLLS ................. 8-1/4"
CENTER DISTANCE BETWEEN ROLLS ... 2-1/4"
ENTRY PINCH ROLLS ............... YES
DIAMETER OF PINCH ROLLS ......... 3-1/2"
SPEED (VARIABLE) ................ 10 TO 60 FPM
ELECTRIC BRAKE .................. YES
INDEPENDENT ROLL ADJUSTMENT ..... YES
CONTROL ......................... DANCER ARM
MOTOR, HORSEPOWER ............... 3/4
Specifications
