SERIAL ............... 5352
MODEL ................ PMM2TC
TYPE ................. SEAM WELDER CIRCUMFERENTIAL
ALUMINUM CAPACITY .... 0.020" TO 0.064"
STAINLESS CAPACITY ... 0.020" TO 0.064"
MILD STEEL CAPACITY .. 0.020" TO 0.125"
THROAT DIMENSIONS .... 10" X 36"
STROKE ............... 5"
PRIMARY VOLTS ........ 460V / 3PH / 60HZ
FULL LOAD AMPS ....... 100
RATING ............... 100KVA
SECONDARY VOLTS ...... 1.58V TO 3.1V
PEAK SECONDARY AMPS .. 60,000AMPS @ 20 CYCLE PULSE
PRESSURE RATIO ....... 50/1
ELECTRODE FORCE ...... 4000 LBS
CYLINDER TYPE RETRACTABLE DIAPHRAGM

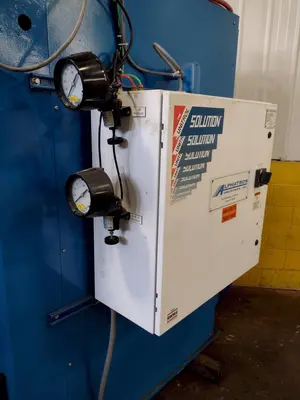

CONTROL INTERTRON MC302A
CONTACTORS SCR, WATER COOLED, 1700 AMPS
