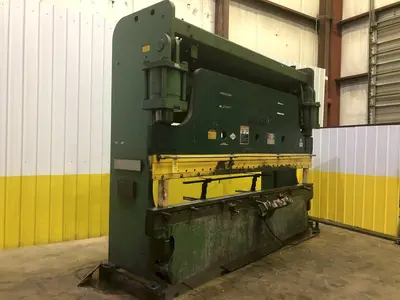

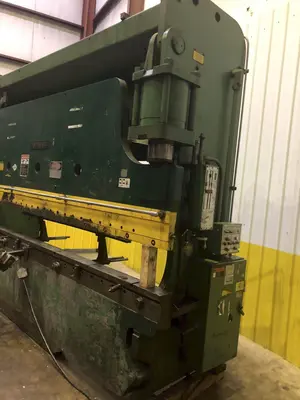

230 TON X 14' CINCINNATI MODEL #230CBX12 HYDRAULIC PRESS BRAKE: STOCK 16875
SERIAL ........................... 41910
MODEL ............................ 230CB12
CAPACITY ......................... 230 TON
OVERALL LENGTH OF BED AND RAM .... 14'
DISTANCE BETWEEN HOUSING ......... 12'6"
STROKE OF RAM .................... 10"
OPEN HEIGHT ...................... 17"
CLOSED HEIGHT .................... 7"
DEPTH OF THROAT .................. 8"
RAM SPEED HIGH ................... 101 IPM
RAM SPEED MEDIUM ................. 49 IPM
RAM SPEEDS LOW ................... 14 IPM
RAM SPEEDS RETURN ................ 95 IPM
MILLED & DRILL FOR ANGLES......... YES
PALM BUTTTONS CONTROLS ........... YES
MOTOR ............................ 35 HP
