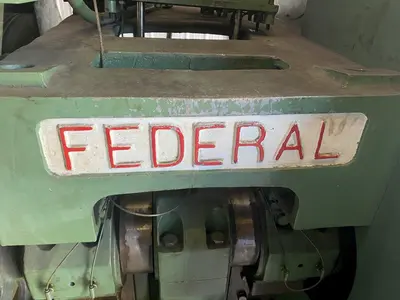

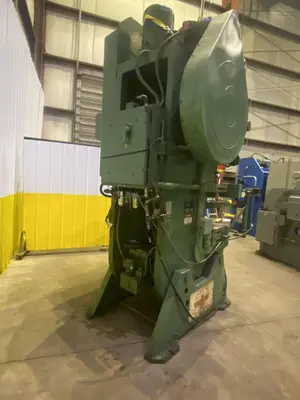

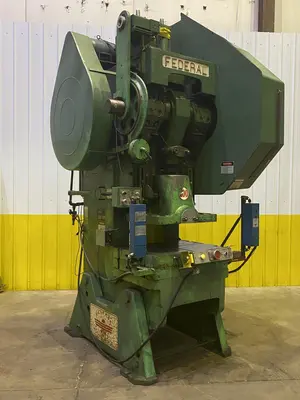

100 TON FEDERAL MODEL #100-28-36 OBI STAMPING PRESS, 2.5" STROKE: STOCK 16745
SERIAL ............ 100 126
NEW ................ 05/1983
MODEL .............. 100
CAPACITY ........... 100 TON
STROKE ............. 2.5"
SHUT HEIGHT ........ 16.5"
ADJUSTMENT ......... 3"
SPEED .............. 45 SPM
THROAT ............. 15"
BED ................ 28" X 36"
BOLSTER ............ 2 @ 28" X 36" X 4" EACH (8" TOTAL)
RAM ................ 21" X 28"
BETWEEN HOUSINGS ... 28.5"
CLUTCH & BRAKE ..... AIR
COUNTER BALANCE .... AIR
CONTROLS ........... YES
DUAL PALM BUTTONS .. YES
AUTO LUBE .......... YES
MOTOR .............. 10 HP
Specifications
