SERIAL ......................... 827622

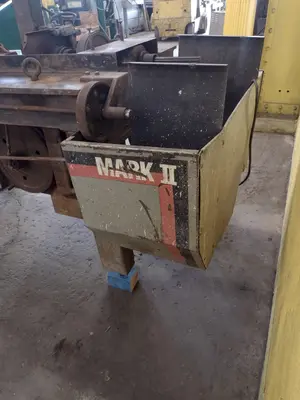

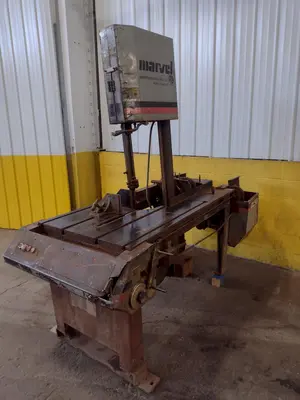

MODEL .......................... 8-MARK-II
CAPACITY ....................... 18" X 22"
CAPACITY AT 45 DEGREES ......... 22" X 12-1/2"
BLADE FEED PRESSURE ............ 0# TO 140#
BLADE SPEEDS (VARIABLE) ........ 50 TO 450 FPM
HEAD TILTS-LEFT OR RIGHT ....... 45 DEGREES
WORKING AREA OF TABLE .......... 33" X 24"
LENGTH OF BLADE ................ 14'6"
WIDTH OF BLADE ................. 1"
VISES .......................... 6" MANUAL
COOLANT ........................ YES
WORK LIGHT ..................... YES
E-STOP BUTTON .................. YES
MOTOR .......................... 2 HORSEPOWER
Specifications
