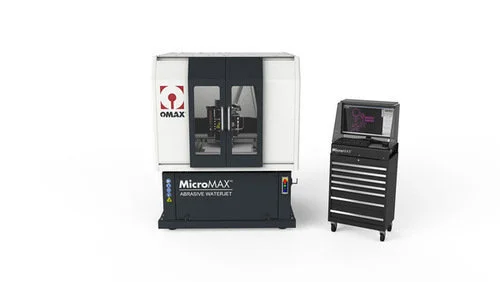

The MicroMAX® JetMachining® Center is the ideal solution for ultra-precision abrasive waterjet machining. Utilizing
advanced high precision linear encoders, innovative vibration isolation, and proven software control systems, the
MicroMAX JetMachining Center is capable of a positioning accuracy of less than five microns while retaining all
the advantages of abrasive waterjet machining. With the optional micro Tilt-A-Jet®, taper-free parts are possible,
eliminating the need for secondary machining. The MicroMAX JetMachining Center can machine stainless steel,
titanium, carbon fiber, PEEK, glass, nitinol, graphite, copper, composites, laminates, and more, with high precision
and smooth finishing, for either prototyping or production.
| Pump Output | 60,000 PSI | 4,136.8 bar |
| X | 610 mm | 24.016" |
| Y | 610 mm | 24.016" |
| Z | 4" | 101.6 mm |
| Table Size-W | 711 mm | 27.992" |
| Table Size-L | 711 mm | 27.992" |
| Power | 30 hp | 22.4 kW |
| Weight | 2,177 | 2,177 |
