SERIAL ........................... TH7-108
YEAR NEW ......................... 2004 (4856 HOURS)

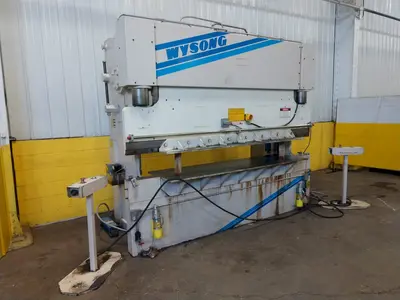

MODEL ............................ THS140-120
CAPACITY ......................... 140 TONS
OVERALL LENGTH OF BED & RAM ...... 120"
WIDTH OF BED ..................... 5"
DISTANCE BETWEEN HOUSINGS ........ 96"
STROKE ........................... 8"
ADJUSTMENT ....................... 9"
MAX DIE SPACE .................... 17"
THROAT ........................... 7"
RAM SPEED APPROACH (HIGH SPEED) .. 300 IPM
RAM SPEED PRESS .................. 20 IPM
RAM SPEED RETURN ................. 225 IPM
RAM PRESS DISTANCE (ADJUSTABLE) .. 1" TO 3"
BED TO FLOOR DISTANCE ............ 34"
TOP FLANGE (BOLT ON) ............. 17-1/2" X 90" LONG
BOTTOM FLANGE (BOLT ON) .......... 24" WIDE X 90"
OPERATING MODES .................. SINGLE, INCH, AUTO
CENTRAL LUBE SYSTEM .............. YES, BIJUR
TONNAGE INDICATOR ................ YES
LIGHT CURTAINS ................... YES
FOOT PEDAL CONTROL ............... YES

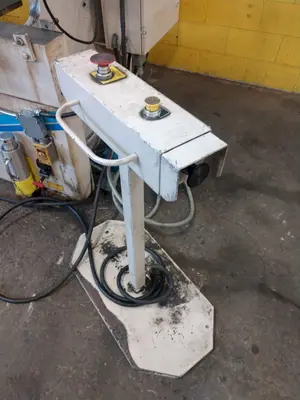

DUAL PLAM BUTTON CONTROL ......... YES
EMERGENCY E-STOP ................. YES

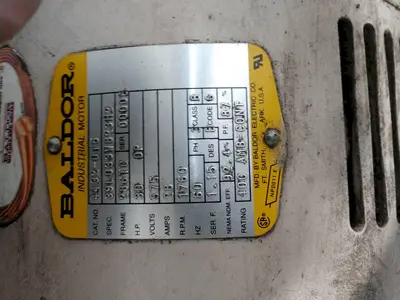

MOTOR ............................ 30 HP
Specifications
