SERIAL ................... 10115
MODEL .................... PHS160X400
YEAR ..................... 1985
CAPACITY ................. 176
TABLE & ARM LENGTH ....... 157.48"
BETWEEN THE HOUSINGS ..... 135"
RAM STROKE ............... 6.69"
RAM ADJ .................. 3.94"
RAM DOWN SPEED ........... 3.94"
OPEN HEIGHT .............. 14.37"
BACKGAUGE DEPTH .......... 24"
BACKGAUGE CONTROLS ....... AUTOMEC CNC 9X9
PIT FOR APRON ............ 14"

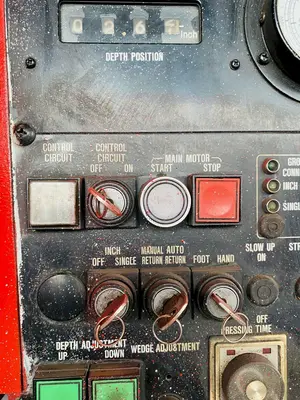

OPERATING MODES .......... INCH & SINGLE
RAM DEPTH ADJUSTMENT ..... YES
RAM RETURN ............... MANUAL & AUTO
POWER RAM ADJUSTMENT ..... YES
TONNAGE ADJUSTMENT ....... YES
TONNAGE INDICATOR ........ YES
RAPID ADVANCE SPEED ...... YES
PALM BUTTON CONTROLS ..... YES
FOOT PEDAL CONTROLS ...... YES
MOTOR .................... 20 HP
