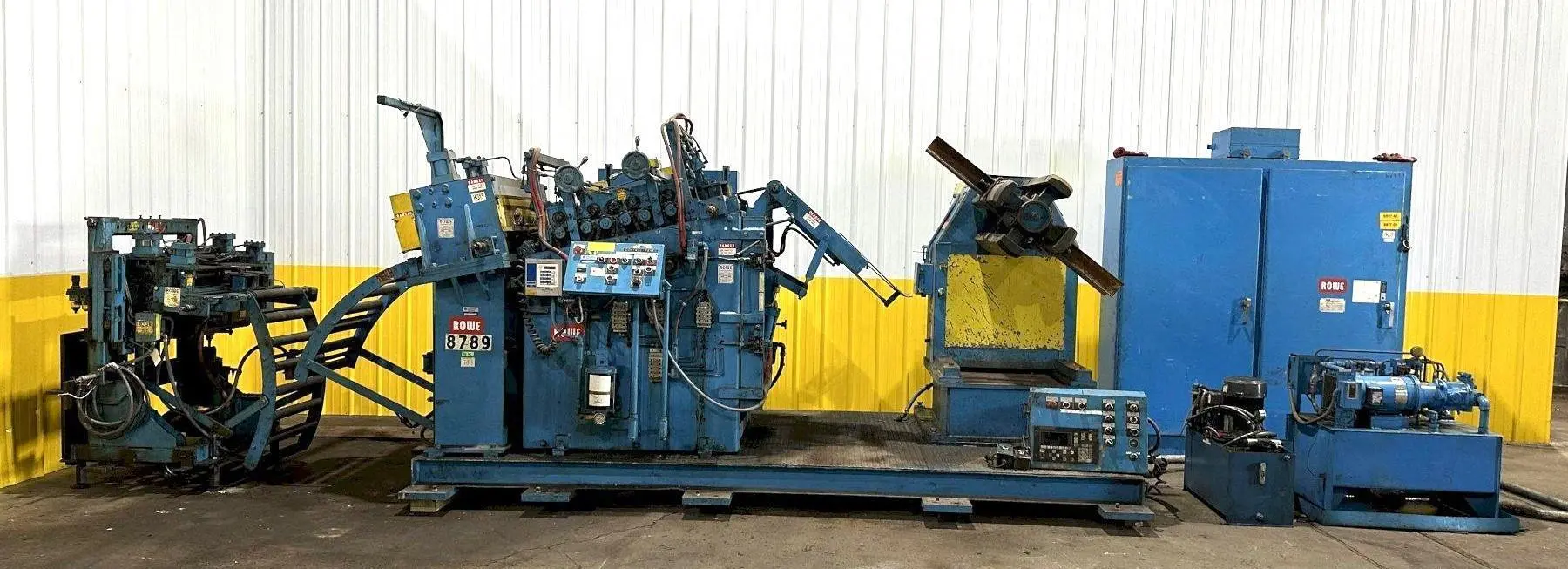

ROWE SERVER FEED & SHEAR LINE
CAPACITY .................... 30" WIDE X .125" MATERIAL
LINE SPEED .................. 7 TO 100 FPM
LINE DIRECTION .............. RIGHT TO LEFT
LINE COMPONENTS:
- UNCOILER
- FLIP UP PEELER TABLE
- STRAIGHTENER & SHEAR
- SERVO FEEDER
- CONTROL STATION & PANEL
ROWE / EGAN UNCOILER:
SERIAL ...................... 28256
MODEL ....................... CPR-PO-15024
CAPACTIY .................... 6,000 LBS
WIDTH OF MANDRAL ............ 30"
COIL I.D. ...................
COIL O.D. ................... 60"
BRAKE ADJUSTMENT ............ VARIABLE
HYDRAULIC EXPANSION ......... YES
COIL KEEPERS ................ YES
ROWE STRAIGHTENER:
SERIAL ...................... 28259
MODEL ....................... 1030-H-FSB
CAPACITY .................... .020 TO .125" MILD STEEL
MAX WIDTH OF COIL ........... 30"
NUMBER OF ROLLS ............. 7, 3 OVER 4
DIAMETER OF ROLLS ........... 3"
JOG / HAND / AUTO FEED ...... YES
PINCH ROLL PRESSURE ADJ ..... YES
DRAG BRAKE STRENGTH ADJ ..... YES
ADJUSTABLE ENTRY GUIDES ..... YES
DANCER ARM LOOP CONTROL ..... YES
TRABON CENTRAL LUBE SYSTEM .. YES
REMOTE CONTROL .............. YES, JOG & SHEAR
MOTOR ....................... 10 HP
ROWE HYDRAULIC SHEAR
SERIAL ...................... 28257
MODEL ....................... 03-30
SHEAR COUNTER ............... YES, DIGITAL
EXIT ROLLER GUIDES & TABLE .. YES
HYDRAULIC UNIT .............. WOMACK
ROWE SERVO FEEDER
SERIAL ...................... 28261
MODEL ....................... PM-FAC-053-230-AB
CAPACITY .................... .020" TO .125"
