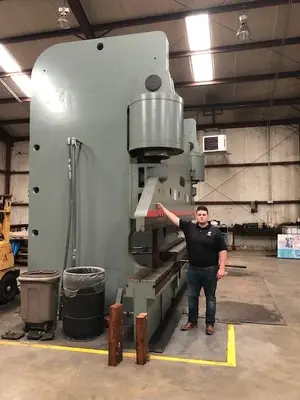

CAPACITY ....................... 1250 TON
OVERALL LENGTH OF BED & RAM .... 24'
BED WIDTH ...................... 30 T SLOTTED
DISTANCE BETWEEN HOUSING ....... 16'6"
STROKE OF RAM .................. 24"
OPEN HEIGHT .................... 36"
CLOSED HEIGHT .................. 12"
DEPTH OF THROAT ................ 20"
SPEED RAPID ADVANCE ............ 46 IPM
SPEED FAST PRESS ............... 25 IPM
SPEED FULL TONNAGE PRESS ....... 10 IPM
SPEED RETURN ................... 19, 34 & 60 IPM
ELECTRIC FOOT PEDAL ............ YES
MILLED & DRILLED FOR ANGLES .... YES
MOTOR .......................... 60 HORSEPOWER
