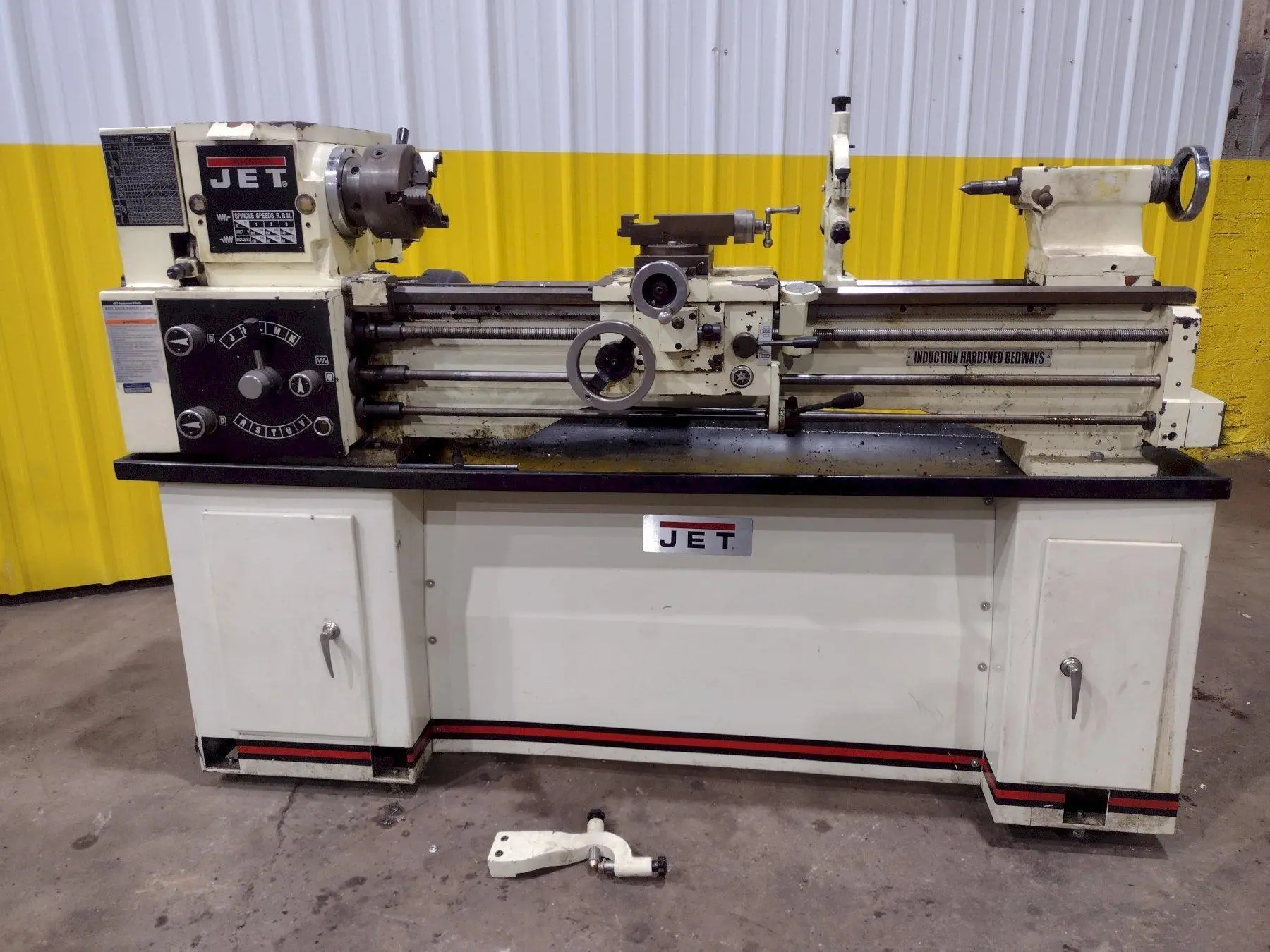

MODEL ............................... DBP-1340A
Swing Over Bed (In.) ................ 13"
Swing Over Cross Slide (In.) ........ 7-25/32"
Swing Through Gap (In.) ............. 18-3/4"
Length of Gap (In.) ................. 8"
Distance Between Centers (In.) ...... 40"
Spindle Bore (In.) .................. 1-3/8"
Spindle Mount ....................... D1-4
Range of Spindle Speeds (RPM) ....... (12) 60 to 1,240
Range of Longitudinal Feeds (IPR) ... (
38)
0.0018 to 0.0374
Range of Cross Feeds (IPR) .......... (38) 0.0006 to 0.013
Range of Inch Threads (TPI) ......... (38) 3-1/2 to 80
Range of Inch Threads (TPI) ......... (38) 3-1/2 to 80
Range of Inch Threads (TPI) ......... (38) 3-1/2 to 80
- 6" 3-jaw direct mount scroll chuck with top reversing jaws
- Steady and follow rest
