Pfauter Model P400 Vertical gear hobber , 16" diameter capacity , 4 dp, chip conyer , misc gears and tooling in plant , New Z-axis lead screw and nut installed 5/22/25 Inspect under power call for video, s/n 24337
| Max Workpiece Diameter | 16" | 406.4 mm |
| Max Diametral Pitch | 3 dp | 3 dp |
PFAUTER Vertical Gear Hobbing machine
Model # P-400
s/n 24337
New 1975
these are very god job shop machines and handle up to 3 DP gears
small footprint , very rigid , universal gear cutting machines
contact us to receive full quote and pricing
Machines general specifications are as follows:
Machine Specifications:
Model P400
Max Gear Diameter 15.74”
Module 8
Rotary Table Size 16"
Bore Of Work Table 3.14”
Max Travel Of Mill Holder Slide 12.20”
Max Cutter Diameter & Length 6.29”
Center Distance Between Milling & Piece 0.78” - 11.41”
Max Moving Of Milling Cutter (Shifting) 4.72”
Max Moving Of Milling Cutter (Tangential) 4.96”
Max Hob Spindle Speed 500 RPM
Axial Feeds 0.4 - 7.5 MM/MIN
Radial Feeds 0.1 - 1.9 MM/MIN
Tangential Feeds 0.16 - 3 MM/MIN
Main Motor 17 KW
Voltage 440/460 V
Approximate Weight 12,500 LBS
Overall Dimension 102”L x 65”W x 95”H
Equipped With:
Hob Arbor
Hob Shift
Differential
Infeed
Tangential feed
hyd Tailstock w/ center
Coolant System
Machine enclosure
Splash Guards
Chip Conveyor
Change gears and misc Tooling

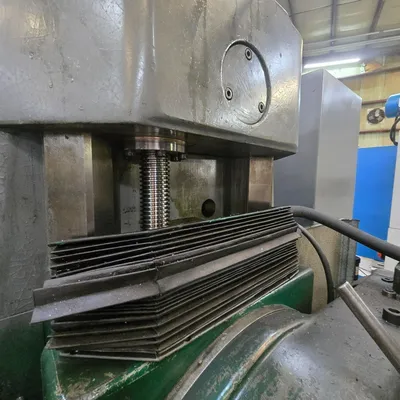

Machine has been gone through , new vertical lead screw and nut installed
on machine in 5/22/25 in our shop. contact us today for under power video
Machine can be inspected under power in our NC Facility. Please contact us
to set up a visit to see this or any of our other gear machines in inventory
visit WWWW.PiselliEnt.com . Let us know if you need anything else or have
further questions . Contact Rich Piselli at Rich@pisellient.com
Video Available Upon Your Request
thank you
Richard Piselli
