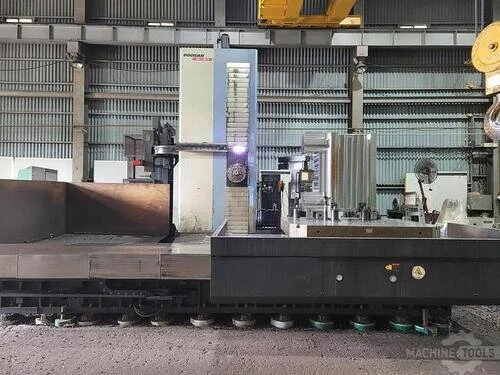

DOOSAN DBC 250II 5.1 CNC Horizontal Boring Mill, 2017 model, in used condition. Enhance your manufacturing capabilities with this reliable horizontal table type boring mill. Ideal for precision tasks in industrial settings.
| Table Size - L | 70.87" | 1,800.1 mm |
| Table Size - W | 62.9" | 1,597.7 mm |
| Table Capacity | 26,400 lb | 11,974.9 kg |
| Table Indexing | .001 N/C ROTARY | .001 N/C ROTARY |
| Spindle Diameter | 5.13" | 130.3 mm |
| Spindle Taper | 50 | 50 |
| Spindle Speed | 6,000 RPM | 6,000 RPM |
| Main Motor | 40 hp | 29.8 kW |
| X - Axis Travel | 118" | 2,997.2 mm |
| Y - Axis Travel | 78.74" | 2,000 mm |
| Z - Axis Travel | 63" | 1,600.2 mm |
| W - Axis Travel | 27.8" | 706.12 mm |
| Automatic Tool Changer Capacity | 40 | 40 |
| Max Tool Length | 23.6" | 599.44 mm |
| Max Tool Weight | 55 lb | 24.9 kg |
| Machine Weight | 94,600 lb | 42,909.9 kg |
| Control | CNC (FANUC 31IB CNC COLOR CONTROL) | CNC (FANUC 31IB CNC COLOR CONTROL) |
ALL MANUALS
CHIP CONVEYOR
COOLANT THRU SPINDLE SYSTEM 20 BAR
RIGID TAPPING
STEEL WAY COVERS
HIGH SPEED SPINDLE
FANUC 31I-B CNC CONTROL
SPINDLE CHILLER
AIR BLAST ON SPINDLE
Y - AXIS CLAMP
W - AXIS CLAMP
PORTABLE HAND HELD MPG
SCALES X, Y, Z,
6000 RPM SPINDLE
PCMCIA CARD SLOT
CUSTOM MACRO B
TOOL LENGTH MEASUREMENT
FULL HIGH GAURDING
