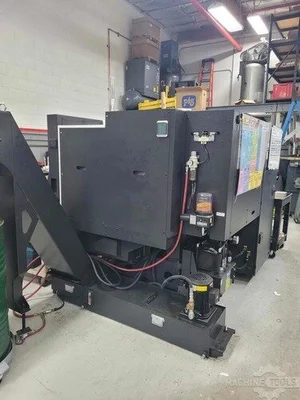

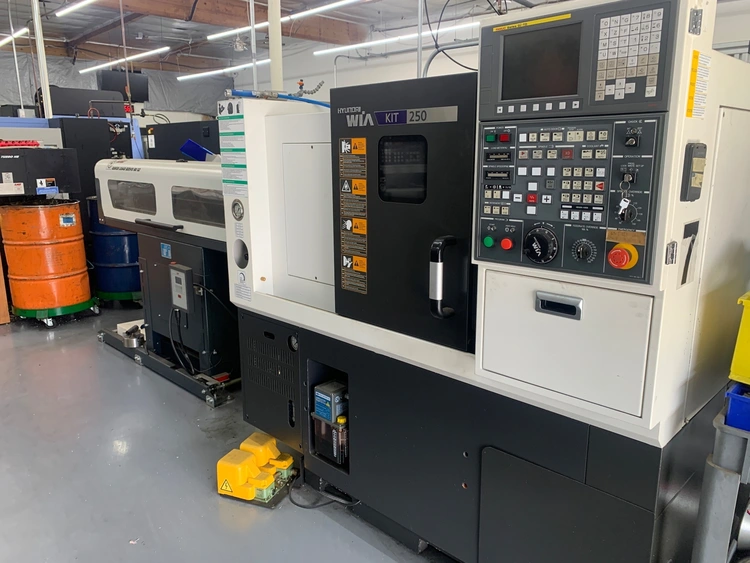

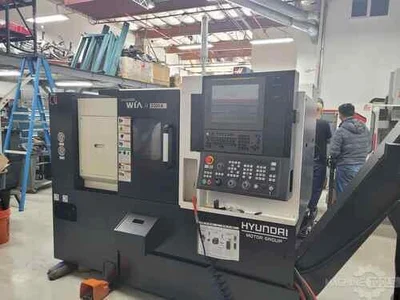

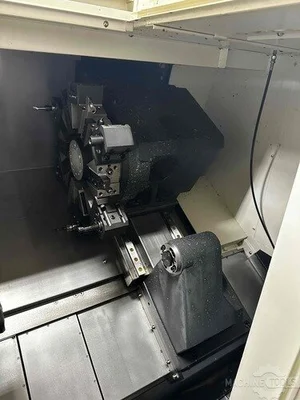

CNC Lathe
| Swing | 23.6" | 599.44 mm |
| Machining Length | 14" | 355.6 mm |
| # Axis | 2 | 2 |
| Chuck Size | 6" | 152.4 mm |
| Bar Capacity | 2" | 50.8 mm |
| Power | 20 hp | 14.9 kW |
| Max RPM | 6,000 RPM | 6,000 RPM |
| Turning Dia | 13.8" | 350.52 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
Make an Offer
Inquire Now Buy Now
Activate Pricing
Chuck Size: 6"
Bar Capacity: 2"
Turning Diameter: 13.8"
Spindle Speed: 6,000 RPM

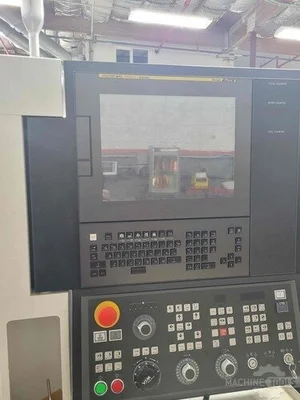

Control: Fanuc CNC
Distance Between Centers: 13.4"

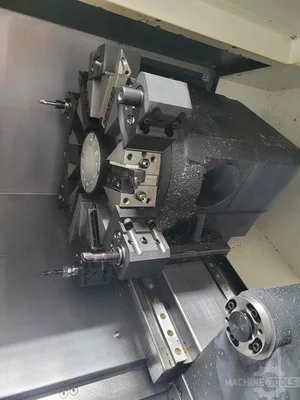

Turret: 12 Station
Spindle Motor: 20 HP
Chip Removal: Chip Conveyor
Royal 16c Collet Nose: Auto Tool Presetter

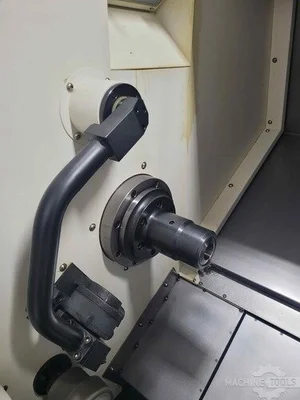

Tailstock: Parts Catcher
