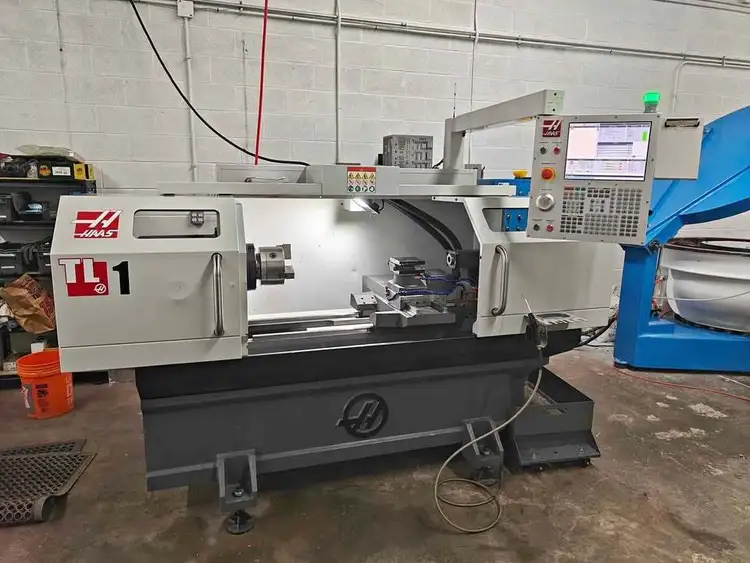

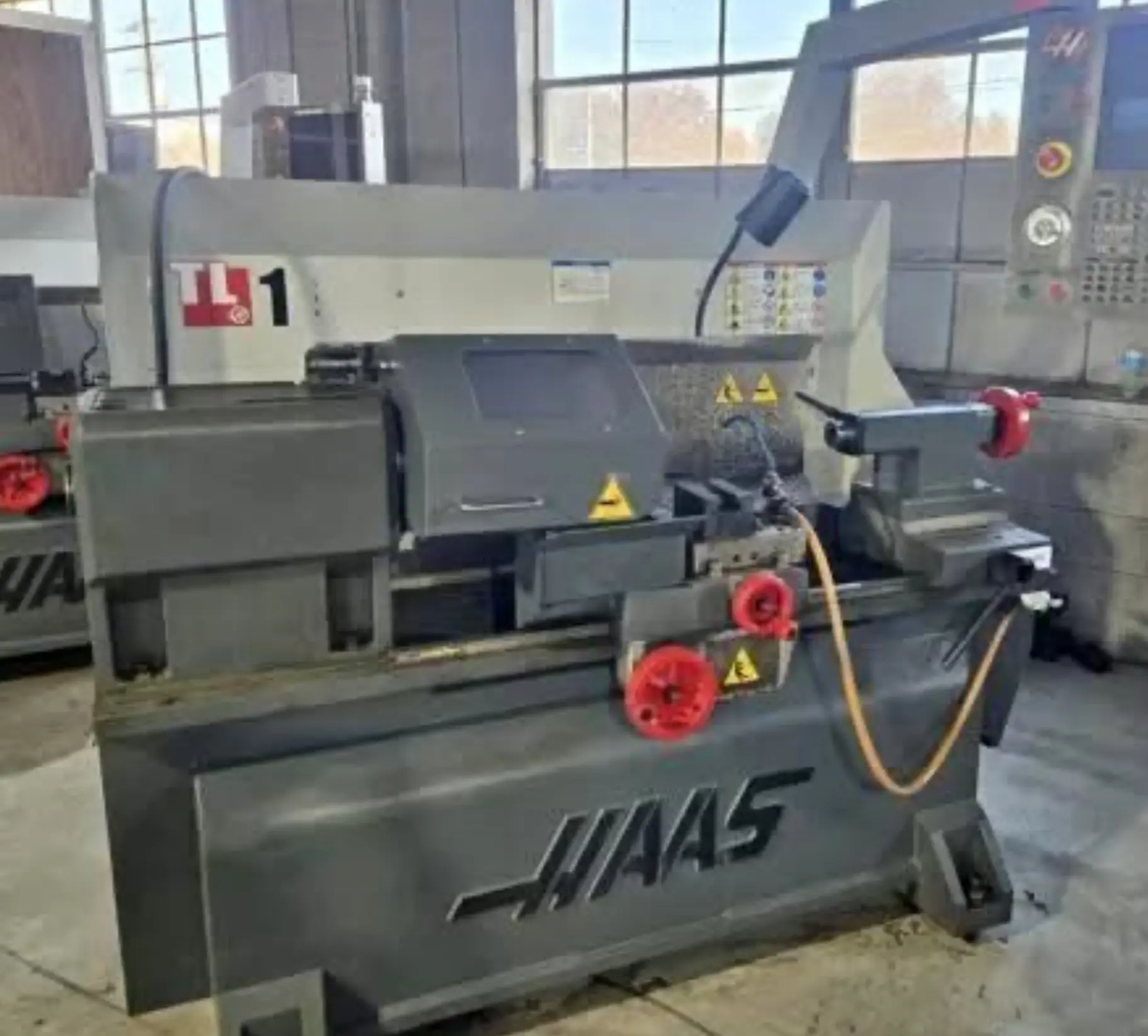

Used CNC Lathe with 16" swing, 762mm machining length, and 8" chuck. Features include Haas CNC Control, tailstock, USB port, and more. Powered by 12 hp, max RPM 2000.
| Swing | 16" | 406.4 mm |
| Machining Length | 762 mm | 30" |
| # Axis | 2 | 2 |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 2.25" | 57.15 mm |
| Power | 12 hp | 8.9 kW |
| Max RPM | 2,000 RPM | 2,000 RPM |
| Turning Dia | 16" | 406.4 mm |
| Control | CNC (HAAS) | CNC (HAAS) |
Spindle Nose: A2-5 S
Spindle Bore: 2.5″
Bar Capacity: 2.25″
X-Axis Travel: 8″
Z-Axis Travel: 30″
Maximum Cutting Diameter: 16″
Maximum Swing: 16″
Chuck Size: 8″
Machine Dimensions: 78″ × 55″
Machine Weight: 4,500 lbs
Haas CNC Control
8″ Chuck
Tailstock
Chuck Cover
Coolant Pump Kit
Memory Lock Switch
USB Port
15″ Color LCD
1 MB of Memory
Intuitive Programming System
