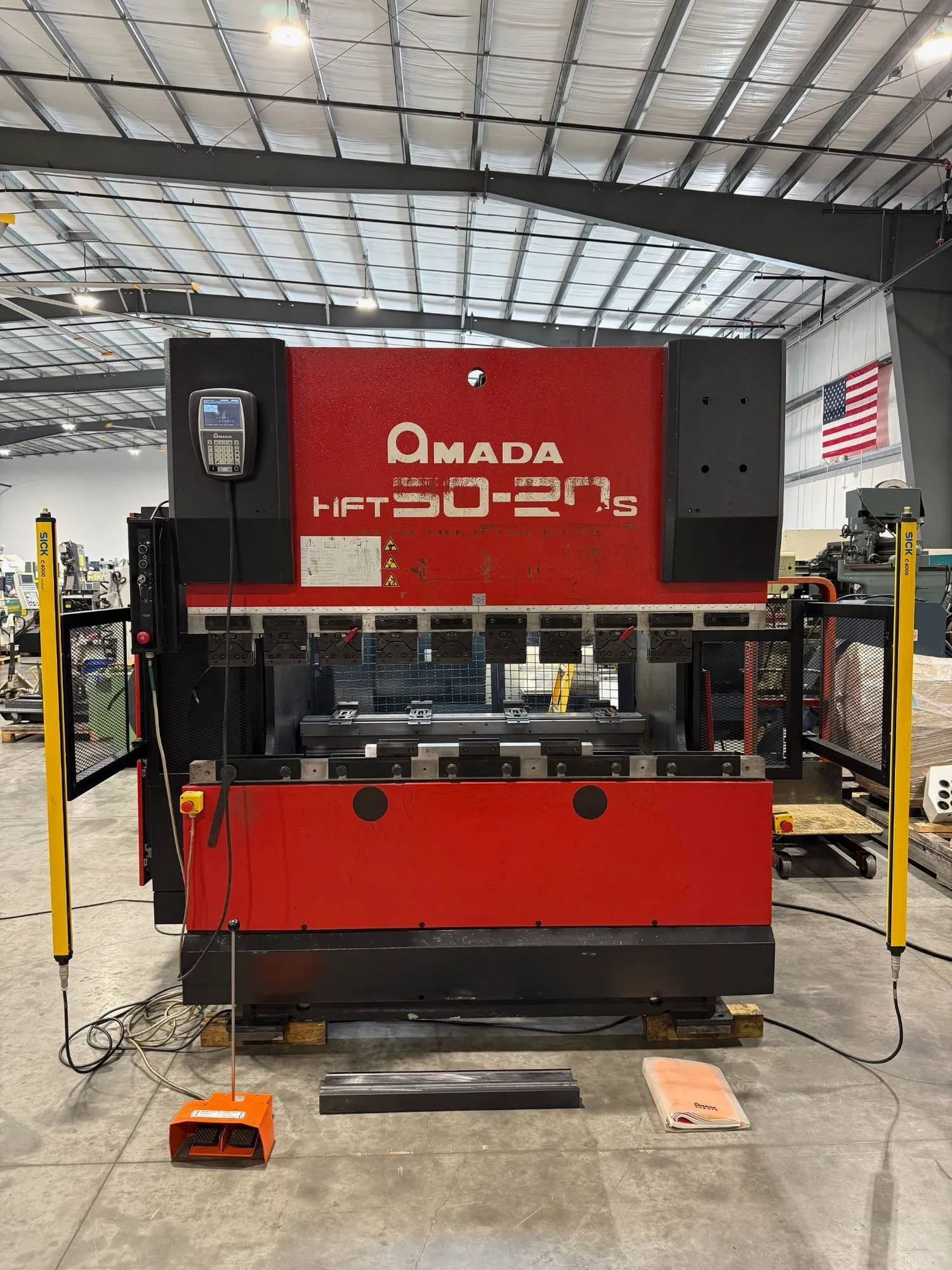

AMADA HFT 50-20S CNC Hydraulic Press Brake 2004’ # 7463
| Tonnage | 55 T | 49.895 t |
| Type | HYD | HYD |
| Overall Length | 78.74" | 2 m |
| Between Housings | 66.93" | 1.7 m |
| Stroke | 7.87" | 199.9 mm |
| # Axis | 4 | 4 |
| Dimensions | 98” x 78 x 97” H | 98” x 78 x 97” H |
| Weight | 10,500 Lbs. | 10,500 Lbs. |
AMADA HFT 50-20S CNC Hydraulic Press Brake 2004’ # 7463
Reference #7463
Model # HFT 50-20S
Serial # HFT-50-20S V040160
Year of manufacture- 2004’
Tonnage- 50 Ton
Bed length-78.74”
Distance between upright- 65.5”
Open height- 18.5”
Stroke length- 7.8”
Throat depth- 16.5”
Approach speed- 236 I.P.M
Bending speed- 23 I.P.M.
Return speed- 189 I.P.M.
Back gauge capacity- 27”
AMADA CD2000 CNC Controller (3 axis= 2 axis back gauge / ram position)
Safety Light Curtains
Quick style clamps
Foot pedal
Machine manual
Machine is wired for 460 volt / 3 phase / 60 H.Z.
Machine weight- 10,500 Lbs.
Machine dimensions- 98” x 78 x 97” H
Machine location- F.O.B. Sarasota, Florida
