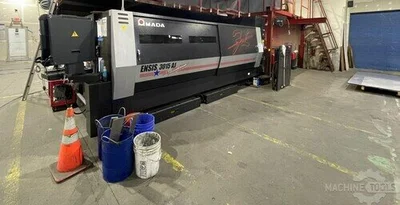

5' x 10' 3kW CNC Fiber Laser
| Wattage | 2000 w | 2,000 W |
Make an Offer
Inquire Now Buy Now
Activate Pricing

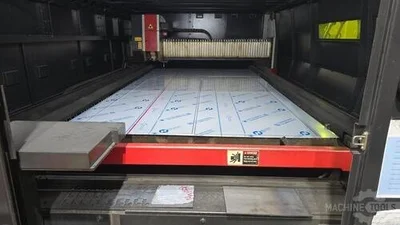

Table Width: 5'
Table Length: 10'
Max Wattage: 3,000

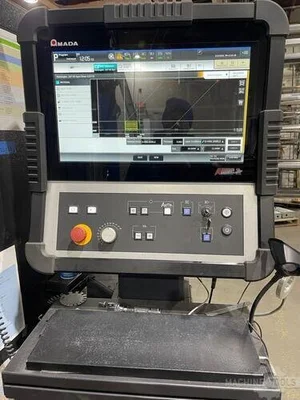

Control: Amada AMNC 3i CNC
Travel Method: Stationary Table X, Y and Z-Axis Movement for Cutting Head
Control Method: X, Y and Z Simultaneous 3-Axis Control
Max Positioning Speed (X,Y): Per Axis: 4,724 IPM, 45-Degree Vector: 6,693 IPM, Max Speed Z-Axis: 4,724 IPM
Repeatability: +/ -0.0002"
Max Material Thickness: Mild Steel: 1.0”, Stainless Steel: 0.500”, Aluminum: 0.500”
Max Material Weight: 2,000 Lbs
Electrical Requirements: 200V, 3 Phase, 60 Hz
Assist Gas - 4 Ports with NC Pressure Control: Ensis Technology for Thicker Cutting at Lower Wattages

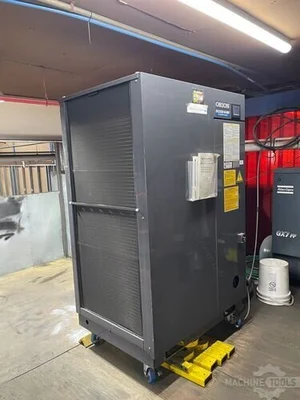

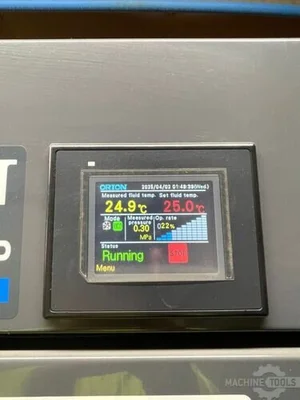

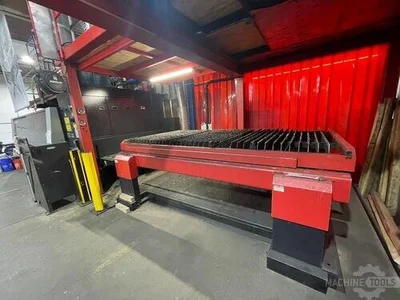

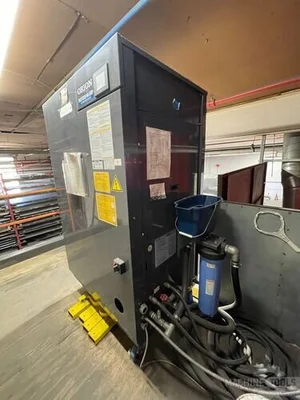

Chiller Unit: Dual Pallet Shuttle Tables
Fanuc AC Servo Motors
