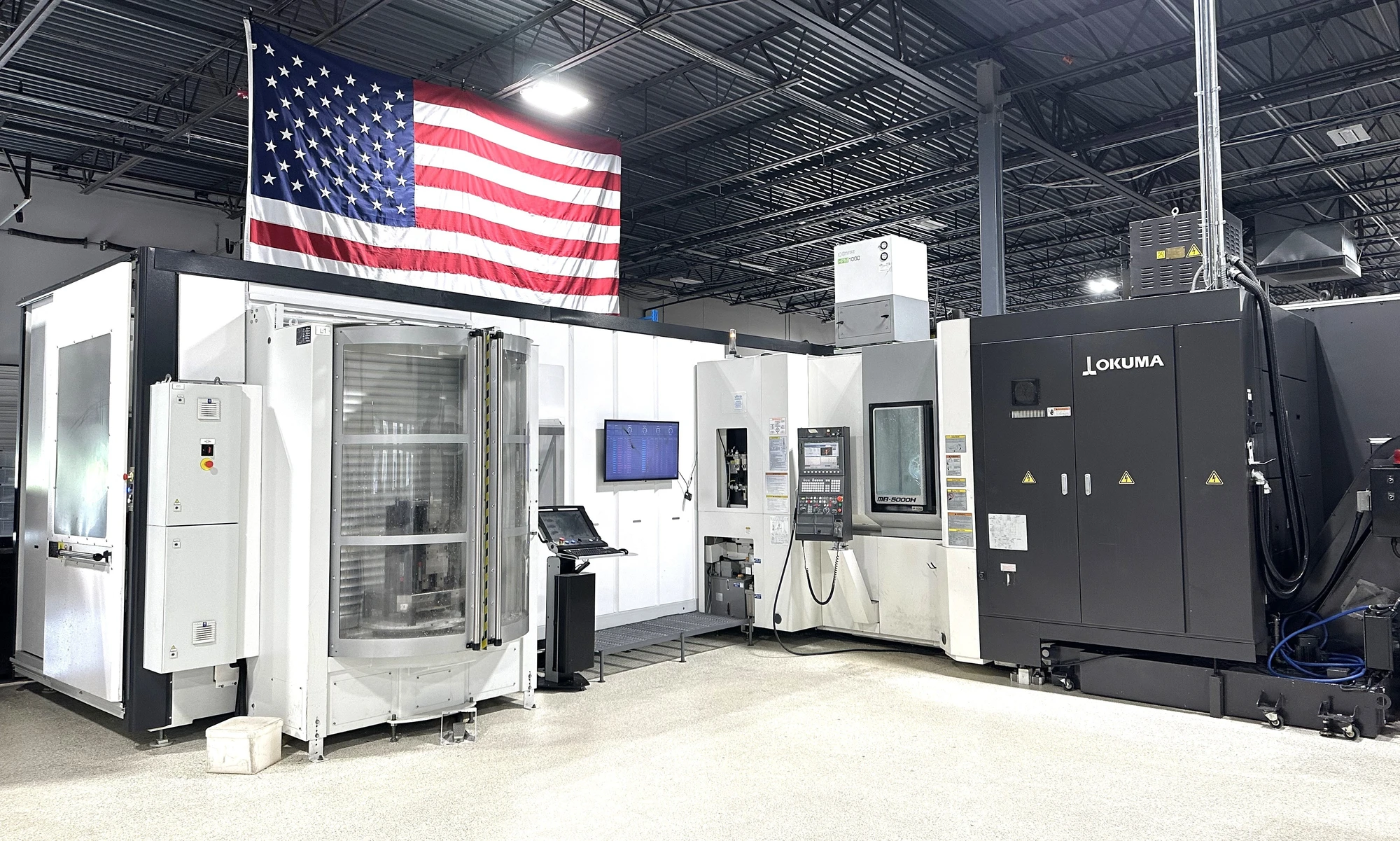

10,104 Cutting Hours. For sale: Used 2014 Okuma MB-5000H Horizontal Machining Center. Features a pallet width and length of 19.69", 29.92" x, y, z-axis travel and a spindle speed of 15,000 RPM. Equipped with Okuma OSP-P300M CNC control, Fastems 10 pallet pool system, and through spindle coolant. Also includes Renishaw touch probe, 146 position tool changer, Rigid Tapping and more. Originally owned, ready for immediate purchase. Replacement cost for new model as equipped exceeds $800,000.
| PALLET WIDTH | 19.69" | 500.13 mm |
| PALLET LENGTH | 19.69" | 500.13 mm |
| PALLET INDEXING | FULL 4TH | FULL 4TH |
| NUMBER OF PALLETS | 10 | 10 |
| MAX WORKPIECE WEIGHT | 1,100 lb | 499 kg |
| X-AXIS TRAVEL | 29.92" | 759.97 mm |
| Y-AXIS TRAVEL | 29.92" | 759.97 mm |
| Z-AXIS TRAVEL | 29.92" | 759.97 mm |
| SPINDLE SPEED | 15,000 RPM | 15,000 RPM |
| SPINDLE MOTOR | 40 hp | 29.8 kW |
| SPINDLE TAPER | CAT 40 | CAT 40 |
| TOOL POSITIONS (ATC) | 146 | 146 |
| RAPID TRAVERSE RATE | 2,362 in/min. | 5,999.5 cm/min. |
| CUTTING FEEDRATE | 2,362 in/min. | 5,999.5 cm/min. |
| Weight | 29,000 lbs | 29,000 lbs |
OKUMA OSP-P300M CNC CONTROL

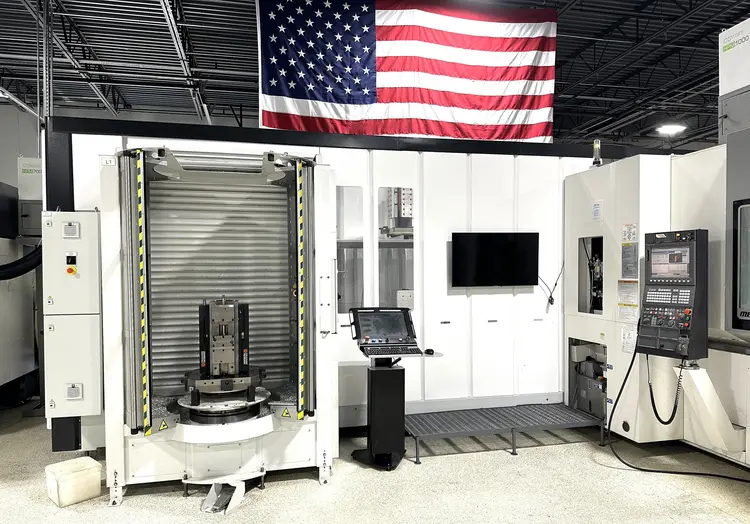

FASTEMS 10 PALLET POOL SYSTEM
THROUGH SPINDLE COOLANT (1,000 PSI)
RENISHAW TOUCH PROBE
146 POSITION TOOL CHANGER
15,000 RPM SPINDLE
CALL 088 FUNCTION
B-AXIS ROTATION INTERLOCK
WORK COORDINATE SYSTEMS (200 SETS)
SPARE M-CODES (4 SETS)
RIGID TAPPING
TOOL BREAKAGE DETECTION
TOOL WEAR COMPENSATION
SPINDLE CHILLER UNIT
SHOWER COOLANT SYSTEM
200 HOUR LUBE TANK FOR EXTENDED RUN TIME
EXTENDED CAPACITY DRAIN TANK
LNS MICROFINE CHIP CONVEYOR WITH FILTRATION
MULTI-TAP TRANSFORMER
(2) USB PORTS
(8) TOMBSTONES INCLUDED
(8) PALLETS INCLUDED
** NEW SPINDLE
** CUTTING TIME: 10,104 HOURS
** ORIGINAL OWNER
** MACHINE CUTTING PRIMARILY ALUMINUM
** REPLACEMENT COST NEW AS EQUIPPED: $800,000+
** IN PLANT, UNDER POWER, READY FOR IMMEDIATE INSPECTION & PURCHASE
