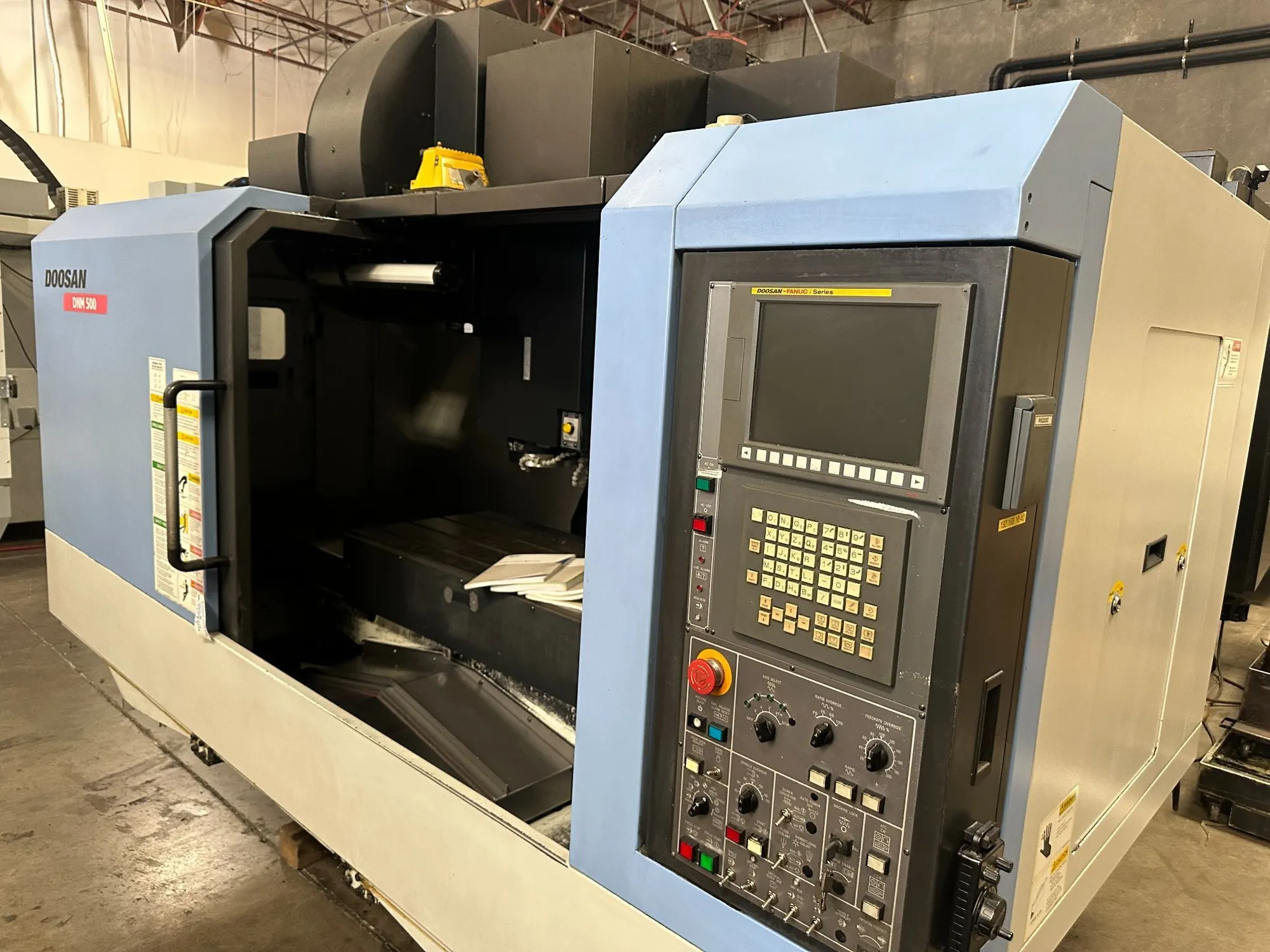

Doosan DNM-500 CNC Vertical Machining Center
New 2010
| X-Axis | 40" | 1,016 mm |
| Y-Axis | 21.2" | 538.48 mm |
| Z-Axis | 21" | 533.4 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 8,000 RPM | 8,000 RPM |
| # ATC | 30 | 30 |
| Taper | 40 | 40 |
| Table-W | 21.2" | 538.48 mm |
| Table-L | 47.2" | 1,198.9 mm |
| # Axis | 3 | 3 |
| Dimensions | 134" x 89" x 104" | 134" x 89" x 104" |
| Weight | 14,330 LBS | 14,330 LBS |
Fanuc Control
Chip Conveyor
Manuals
