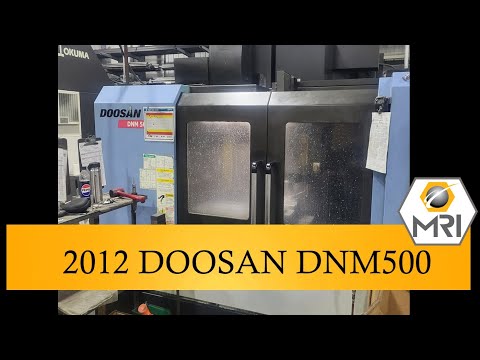

The DNM Series delivers the most value for your investment as the best-in-class vertical machining center fully equipped with the most standard features built-in. This powerfully productive machine features a BIGPLUS spindle, dual chip augers.
| X-Axis | 40.2" | 1,021.1 mm |
| Y-Axis | 21.3" | 541.02 mm |
| Z-Axis | 20.1" | 510.54 mm |
| # Axis | 3 | 3 |
| Power | 20 hp | 14.9 kW |
| RPM | 8,000 RPM | 8,000 RPM |
| Taper | CT 40 | CT 40 |
| # ATC | 30 | 30 |
| Pallets? | No | No |
| Control | CNC (CNC FANUC) | CNC (CNC FANUC) |
| Dimensions | 90" X 134" X 106.5" | 90" X 134" X 106.5" |
| Weight | 14,500 | 14,500 |
TRAVELS
X-AXIS: 40.2" / 1020mm
Y-AXIS: 21.3" / 540mm
Z-AXIS: 20.1" / 510mm
SPINDLE NOSE TO TABLE TOP: 5.9" - 26"
SPINDLE CENTER TO COLUMN: 23.1"
SPINDLE MOTOR: 20 HP
MAX SPINDLE SPEED: 8,000 RPM
SPINDLE TAPER: CAT 40
AUTOMATIC TOOL CHANGER: 30 TOOLS
TABLE SIZE: 47.2" X 21.3" / 1200 X 540mm
MAXIMUM TABLE LOAD: 1763 LBS / 800 kg
RAPID TRAVERSE RATES X-Y/Z: 1417/1181 IPM
APPROXIMATE MACHINE DIMS: 90" X 134" X 106.5"
APPROXIMATE MACHINE WEIGHT: 14,500 LBS
FANUC SERIES CNC CONTROL
CHIP CONVEYOR
30 STATION SIDE MOUNT ATC
